TP-LINK TL-ANT2424B Antenna
This product has been discontinued by the manufacturer
Please visit
TP-LINK Antennasfor alternative options.
Description
What This Product Does

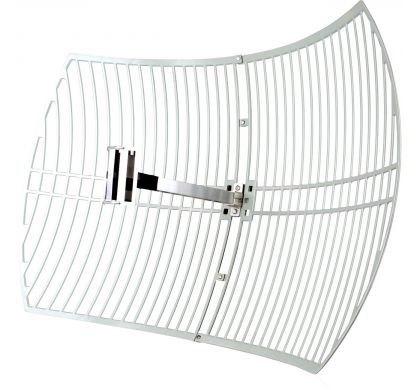

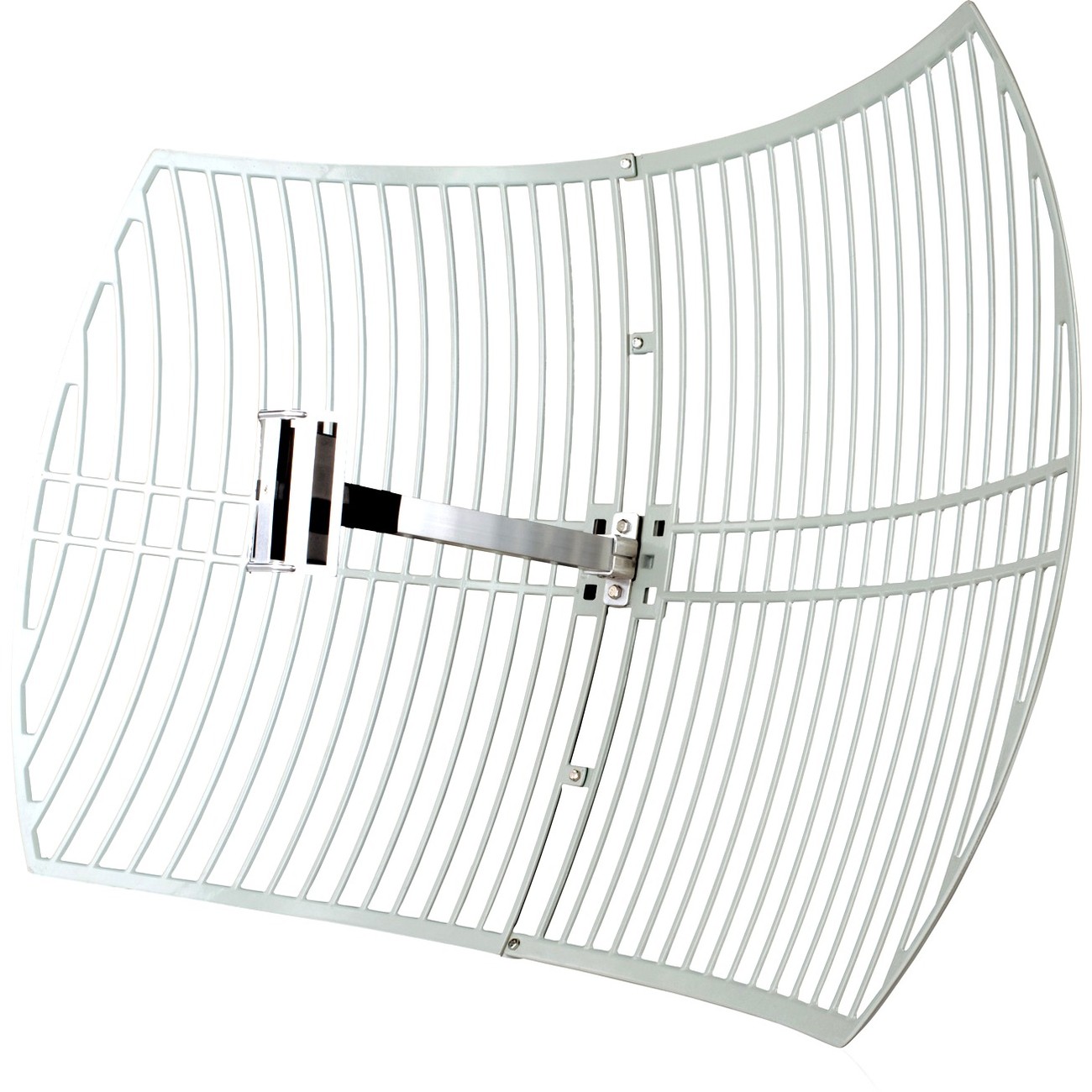

Grid parabolic antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 56 km.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-ANT2424B
Product Name:
TL-ANT2424B Grid Parabolic Antenna
Product Type:
Antenna
Technical Information
Frequency Band Type:
- UHF
Frequency:
- 2.40 GHz to 2.48 GHz
Antenna Gain:
- 24 dBi
Impedance:
50 Ohm
Polarization:
Horizontal/Vertical
Interfaces/Ports
Number of Connectors:
1
Connector Type:
N-Type
Physical Characteristics
Form Factor:
Parabolic
Miscellaneous
Application/Usage:
- Wireless Data Network
Compatibility:
- TL-WA601G Wireless Access Point
- TL-ANT24PT Pigtail Cable
- TL-ANT24EC6N Antenna Extension Cable
