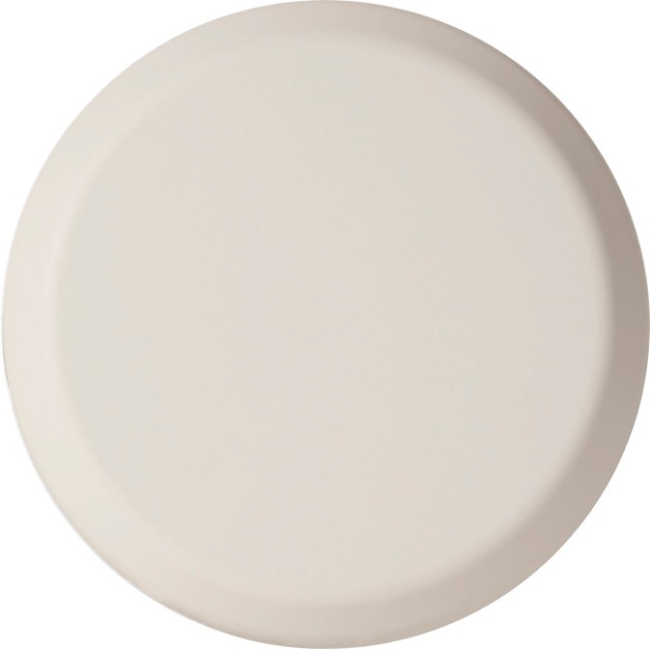

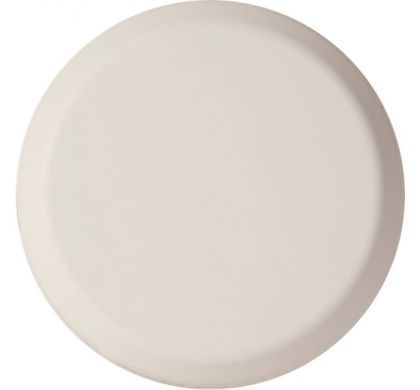

HPE Aruba AP-ANT-40 Antenna for Indoor, Wireless Data Network
Description
AP-ANT-40 is a dual band 4-element omni-directional antenna for use in Wi-Fi MIMO applications. Housed in a compact, low-profile and discrete plastic enclosure, the antenna can be mounted to a variety of ceilings. Each of the four MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum rated coaxial pigtail.
The radiation patterns are uniform and symmetrical, providing high level signal density into defined coverage zones, and optimum coverage conditions for MIMO performance.
The radiation patterns are uniform and symmetrical, providing high level signal density into defined coverage zones, and optimum coverage conditions for MIMO performance.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
Aruba
Product Model:
AP-ANT-40
Product Name:
AP-ANT-40 Indoor 4X4 MIMO Antenna
Product Type:
Antenna
Technical Information
Directivity:
Omni-directional
Frequency:
- 2.40 GHz to 2.50 GHz
- 4.90 GHz to 6 GHz
Antenna Gain:
- 5 dBi
Interfaces/Ports
Connector Type:
RP-SMA
Physical Characteristics
Height:
32 mm
Diameter:
178 mm
Form Factor:
Ceiling Mount
Weight (Approximate):
410 g
Miscellaneous
Application/Usage:
- Indoor
- Wireless Data Network
