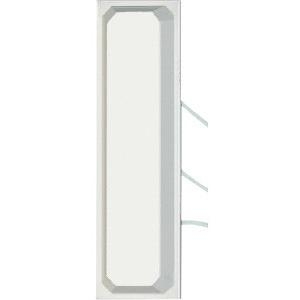

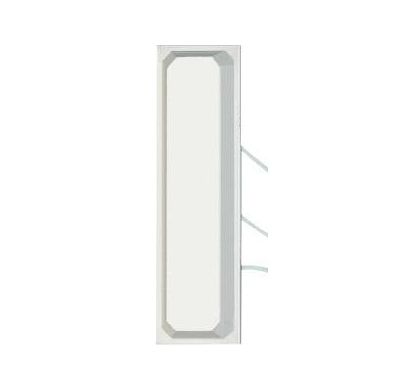

HPE Aruba AP-ANT-16 Antenna for Indoor, Wireless Access Point, Wireless Data Network

AP-ANT-16 is a dual-band 3-element omni-directional antenna for use in 802.11n MIMO applications. Housed in a compact, low-profile PVC/Acrylic Radome, the antenna can be mounted to a variety of drop ceiling grids using the integrated spring clips. Each of the three MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum-rated coax pigtail. The radiation patterns are uniform and symmetrical, providing high-level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 and 4.9-5.9 GHz bands.

As a multi-antenna array, the AP-ANT-16 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
