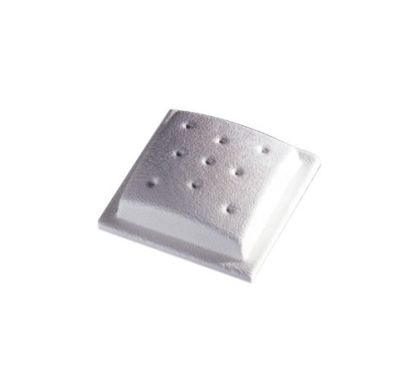

HPE Aruba AP-ANT-13B Antenna for Indoor, Wireless Data Network, Wireless Access Point
Description
AP-ANT-13B antenna offers characteristics that are only normally seen in much larger antennas, offering "no compromise" coverage ideally suited for high-density AP deployments. The AP-ANT-13B antenna features a discrete, small package that easily blends into the office environment and its well-defined coverage area ensures excellent system-wide in-building performance in high-density, high-capacity environments. Ideal for conference rooms, dense cubicle deployments.
The AP-ANT-13B is available as a single antenna or a multipack three antenna kit, the AP-ANT-13B-KIT. An array of three AP-ANT-13Bs can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage, or the AP-ANT-13B single antenna can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
The AP-ANT-13B is available as a single antenna or a multipack three antenna kit, the AP-ANT-13B-KIT. An array of three AP-ANT-13Bs can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage, or the AP-ANT-13B single antenna can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
Aruba
Product Model:
AP-ANT-13B
Product Name:
Indoor MIMO 2.4- 2.5 GHZ and 4.9-5.9 GHZ Ceiling Mount Antenna
Product Type:
Antenna
Technical Information
Directivity:
Omni-directional
Frequency:
- 2.40 GHz to 2.50 GHz
- 4.90 GHz to 5.90 GHz
Antenna Gain:
- 4 dBi
Interfaces/Ports
Connector Type:
RP-SMA
Physical Characteristics
Height:
55 mm
Width:
55 mm
Depth:
16 mm
Form Factor:
Ceiling Mount
Miscellaneous
Application/Usage:
- Indoor
- Wireless Data Network
- Wireless Access Point
