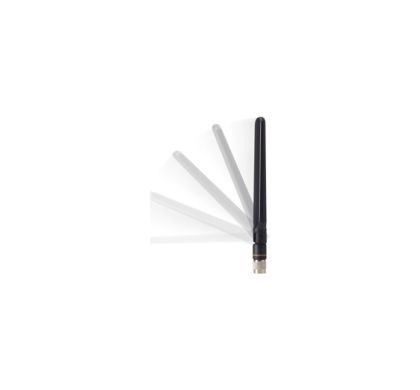

CISCO Aironet AIR-ANT2524DB-R Antenna
Description
The next generation of Cisco Aironet 802.11n access points -the Cisco Aironet 3600e Series and 1550 Series- requires the use of dual-band external antennas to make them fully functioning units. As these access points take greater advantage of the multiple-input multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. Using dual-band antenna ports allows the access point to support these added transceivers while maintaining a reasonably low number of antenna connections. Each dual-band antenna can transmit or receive Wi-Fi signals in both the 2.4-GHz and 5-GHz bands simultaneously.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Aironet
Product Model:
AIR-ANT2524DB-R
Product Name:
Aironet AIR-ANT2524DB-R Antenna
Product Type:
Antenna
Technical Information
Frequency:
- 5 GHz
- 2.40 GHz
Antenna Gain:
- 4 dBi
Interfaces/Ports
Number of Connectors:
1
Connector Type:
RP-TNC
Physical Characteristics
Form Factor:
Dipole
Miscellaneous
Application/Usage:
- Wireless Data Network
Compatibility:
Cisco Aironet Access Point:
- 3600e Series
- 1550 Series
