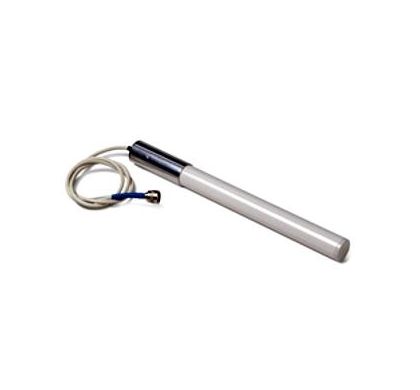

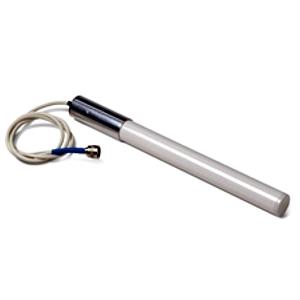

CISCO Aironet AIR-ANT5160V-R Antenna
This product has been discontinued by the manufacturer
Please visit
CISCO Antennasfor alternative options.
Description
The antenna is a ruggedized high-performance co-linear antenna that operates in the 5-GHz frequency range and is designed for use in large rooms or vaulted areas where extended coverage is needed. The antenna is designed to be used indoors or outdoors and can be mounted on a mast.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Aironet
Product Model:
AIR-ANT5160V-R
Product Name:
Aironet Omnidirectional Antenna
Product Type:
Antenna
Technical Information
Directivity:
Omni-directional
Maximum Antenna Range:
251 m
Frequency Band Type:
- SHF
Frequency:
- 5.15 GHz to 5.85 GHz
Antenna Gain:
- 6 dB
Impedance:
50 Ohm
Polarization:
Vertical
Survival Wind Speed:
55880 mm/s
Cable Length:
- 91.44 cm
Interfaces/Ports
Number of Connectors:
1
Connector Type:
RP-TNC
Physical Characteristics
Height:
304.8 mm
Width:
25.4 mm
Diameter:
25.4 mm
Weight (Approximate):
150.3 g
Miscellaneous
Application/Usage:
- Wireless Data Network
Package Contents:
- Aironet 6-dBi Omnidirectional Antenna
- One T-rail grid bracket
- One bracket plate
- Two internal tooth lock washers
- Two #6-32 x 1/4-in. SS Phillips machine screws
- One I-beam clamp
- One 1/4-in. flat washer
- One 1/4-in. split lock washer
- One 1/4 x 20 x 1/2-in. hex head bolt
- Six 5/16-in. x 18 SS hex nuts
- Four 5/16-in. SS lock washers
- One U-bolt
- One V-bracket
- Two base brackets
- Two 5/16-in. flat washers
Additional Information:
All range estimations are based on an external antenna associating with an integrated Intel Centrino client adapter under ideal conditions. The distances referenced here are approximations and should be used for estimation purposes only.
- Application: Indoor/outdoor midrange antenna
Compatibility:Cisco Aironet 1200 Series Access Points
