STARTECH VideoView Video Switchbox

Retail price: $102.29
$101.25
(Includes GST) You save: $1.04 (1%) Save 1%
ST124PRO
Available
+
Add to favourites

Description

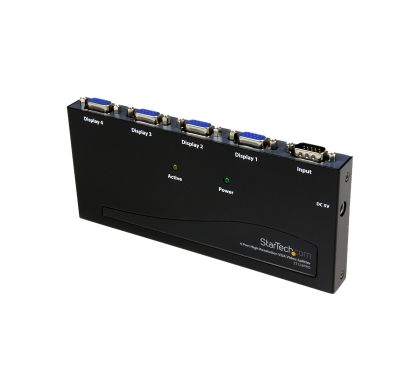

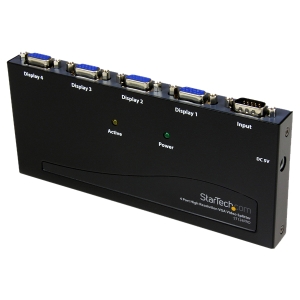

The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.

This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Family:
VideoView
Product Name:
4 Port High Res VGA Video Splitter
Product Type:
Video Switchbox

Technical Information

Number of Input Devices Supported:
1
Device Supported:
  • Computer
Number of Displays Supported:
4

Video

Graphics Modes:
  • VGA
  • SVGA
  • XGA
  • QXGA
Maximum Video Resolution:
2048 x 1536
Maximum Video Bandwidth:
350 MHz

Media & Performance

Maximum Operating Distance:
64.01 m

Physical Characteristics

Height:
40.6 mm
Width:
172.7 mm
Depth:
116.8 mm
Weight (Approximate):
1.15 kg

Miscellaneous

Additional Information:
  • Daisy chainable for almost unlimited expansion
  • Uses standard monitor extension cables
  • DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)
