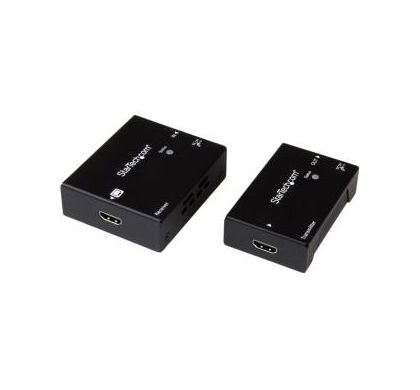

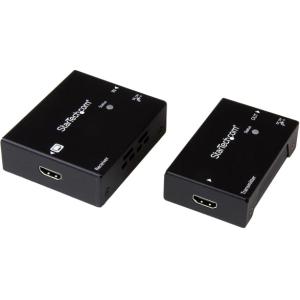

STARTECH Video Console/Extender - Wired

Retail price: $983.39
$973.50
(Includes GST) You save: $9.89 (1%) Save 1%
ST121HDBTPW
Available
+
Add to favourites

Description

Extend HDMI up to 330ft (100m) over CAT5/CAT6 cable with Power over Cable to Receiver. This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.

What is HDBaseT?

HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Extend More than Video with HDBaseT

For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you'll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.

Astonishing Picture Quality at 330 Feet Away

With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.

With HDBaseT you'll be amazed at how Ultra HD picture quality, four times the resolution of high-definition 1080p can be maintained even at 330 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330, you can comfortably use this extender to make any video source look great, while future proofing your setup for 4K implementation.

Hassle-free, Professional Installation with a Single Cable

This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.

The ST121HDBTPW is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K - 330 ft (100m)
Product Type:
Video Console/Extender

Technical Information

Connectivity Technology:
  • Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Daisy Chain:
No
Maximum Operating Distance:
100.58 m

Video

Maximum Video Resolution:
3840 x 2160

Interfaces/Ports

Network (RJ-45):
Yes
HDMI In:
Yes
HDMI Out:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

Material:
  • Aluminium
Height:
25 mm
Width:
67 mm
Length:
80 mm
Weight (Approximate):
310 g

Miscellaneous

Certifications & Standards:
  • CE
  • FCC
Green Compliant:
Yes
