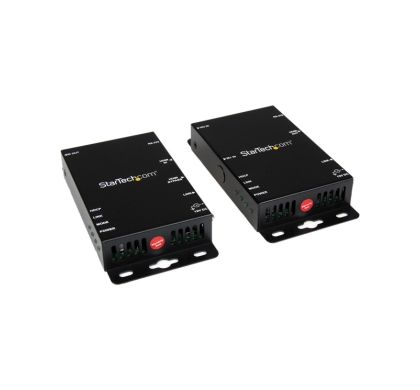

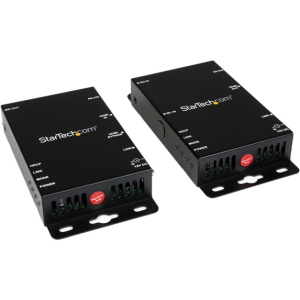

STARTECH Video Console/Extender - Black

Retail price: $799.69
$791.75
(Includes GST) You save: $7.94 (1%) Save 1%
ST121UTPHD2
Available
+
Add to favourites

Description

Extend an HDMI® video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared control. The ST121UTPHD2 HDMI® over Cat5 Extender Kit can extend the audio and video signal output from an HDMI®-equipped device by up to 330 feet (100 Meters), over a single CAT5 cable, or up to 165 Feet (50 Meters) over a single CAT6 cable. The extender supports full High-Definition video (1080p) and HD 3D, and also extends the accompanying digital audio signal.

For convenient, time-saving control of the media source, the CAT5 HDMI extender offers bi-directional RS232 serial and Infrared (IR) interfaces, which enable you to control the HDMI audio-video source from either end of the connection.

The HDMI over CAT5 Extender Kit includes both the HDMI® to CAT5 transmitter and the Cat5 to HDMI receiver needed for a cost-effective, ready-to-use digital signage solution.

To help ensure seamless performance without any unexpected or unnecessary interruptions, the HDMI Ethernet transmitter and receiver units are fully compliant with High Speed HDMI® and HDCP standards, and each unit features lockable power connectors to prevent accidental disconnections.

The ST121UTPHD2 HDMI over Cat5 Extender Kit is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
HDMI over Cat5 Video Extender with Audio - RS232 and IR Control
Product Type:
Video Console/Extender

Technical Information

Maximum Operating Distance:
100.58 m

Interfaces/Ports

Network (RJ-45):
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1

Media & Performance

Twisted Pair Cable Standard:
  • Category 5

Physical Characteristics

Colour:
  • Black
Material:
  • Steel
Height:
25 mm
Width:
80 mm
Length:
150 mm
Weight (Approximate):
305 g
