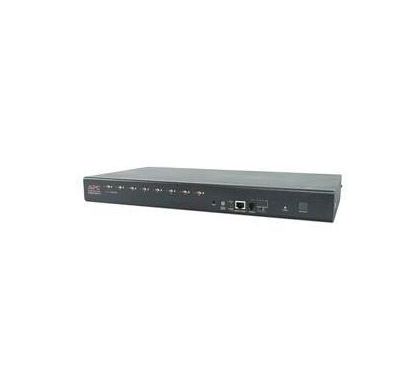

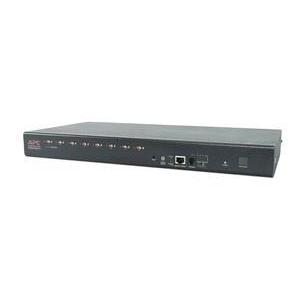

APC AP5201 KVM Switchbox

AP5201
Please Call
Please contact us for pricing

Description

The KVM Switch can connect up to 32 switches to provide direct control of 16 computers or control of up to 512 computers through serial connections, using only one keyboard, monitor, and mouse. Automatic scanning feature, Cascading Capabilities, Hot Pluggable Operation, Keep Alive function, Microsoft Intellimouse support, Occupies 1U of rack space, On-Screen Display (OSD) capability, PC mouse/keyboard/video support, Powder coat paint finish, Status Indicator LEDs

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
AP5201
Product Name:
8 Port Multi-Platform Analog KVM Switch
Product Type:
KVM Switchbox

Technical Information

Number of Computers Supported:
8
Number of Local Users Supported:
1
Minimum Scan Interval:
1 Second

Video

Maximum Video Resolution:
1920 x 1440

Power Description

Power Consumption:
  • 8 W

Physical Characteristics

Colour:
  • Black
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
44.5 mm
Width:
431.8 mm
Depth:
209.6 mm
Weight (Approximate):
4.54 kg

Miscellaneous

Package Contents:
  • 1 x KVM Switch AP5201 (8 port)
  • 1 x Configuration cable
  • 1 x L5-15 to IEC power cable
  • 2 x Brackets for a 19-inch enclosure
  • 1 x Installation Manual
  • 1 x KVM Switch Utility CD
  • 1 x Warranty card
Additional Information:
  • The keep-alive feature assures all the keyboard and mouse connections work properly if the KVM Switch loses power temporarily.
  • Auto-sensing of KVM station positions for serially-connected installations, which are indicated on the front panel LED.
  • Port names automatically reconfigure when the station sequence is changed.
  • No software is required; select a computer by using the On-Screen Display (OSD) menu or Hot Key combination.
  • AutoScan offers monitoring of connected computers.
Certifications & Standards:
  • FCC Part 15 Class A
  • ICES Class A: Canadian ICES-003
  • VCCI Class A
  • AS/NZS 3548 (C-Tick) Class A
  • ICES-003
  • IEC 60950
  • UL 60950
Platform Supported:
  • PC

Warranty

Standard Warranty:
2 Year
