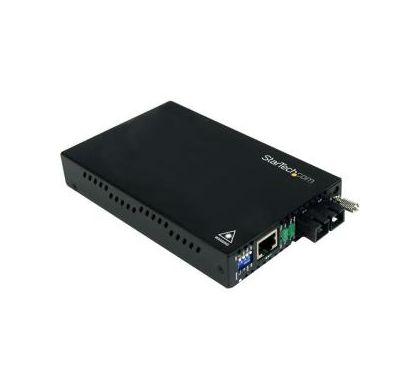

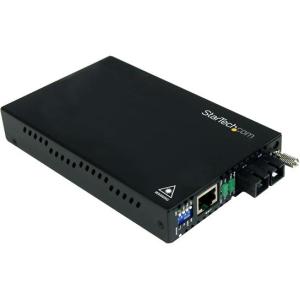

STARTECH Transceiver/Media Converter
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber. The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Packaged Quantity:
1
Product Type:
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported:
Single-mode
Maximum Distance Supported:
30 km
Network & Communication
Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Description
Input Voltage:
- 12 V DC
Physical Characteristics
Colour:
- Black
Form Factor:
- Desktop
- Rack-mountable
Height:
20.3 mm
Width:
94 mm
Depth:
160 mm
Weight (Approximate):
601 g
Miscellaneous
Compatibility:
ETCHS2U Rackmount Chassis
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- FC
- FCC
Green Compliant:
Yes
