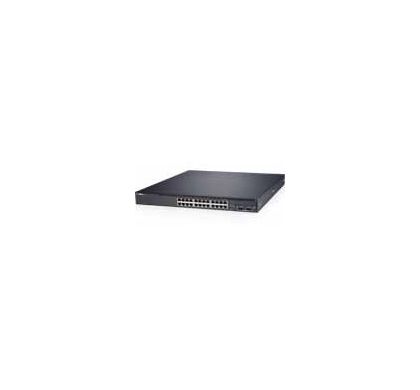

WYSE Dell N4032F Manageable Layer 3 Switch

210-ABVT

This product has been discontinued by the manufacturer

Please visit

WYSE Switches & Bridges

for alternative options.

Description

Dell Networking N4000 is a series of energy-efficient and cost-effective 10GbE switches designed for modernizing
and scaling network infrastructure. N4000 switches utilize a comprehensive enterprise-class Layer 2 and Layer 3
feature set, deliver consistent, simplified management and offer high-availability device and network design.

The N4000 switch series offers a power-efficient and resilient 10 Gigabit Ethernet (10GbE) switching solution with support for 40GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The N4000 switch series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. The N4000 series includes dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via flexible user port stacking at 10Gbps or 40Gbps. The high-availability stacking architecture allows management of up to 12 switches from a single IP address.

Specifications

General Information

Manufacturer:
Dell Technologies
Manufacturer Website Address:
http://www.dell.com.au
Brand Name:
Dell
Product Series:
N4000
Product Model:
N4032F
Product Name:
N4032F Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 24 x 10 Gigabit Ethernet Expansion Slot
  • 1 x Expansion Slot

Media & Performance

Media Type Supported:
  • Optical Fiber
Ethernet Technology:
  • 10 Gigabit Ethernet
Network Technology:
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
25
Expansion Slot Type:
  • SFP+
Number of SFP+ Slots:
24

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • CLI
    • Web Based Management
    • Remote Management
    • SNMP v1, v2, v3
    • Telnet
    • RMON
    • MIB

Memory

Standard Memory:
  • 2 GB
Flash Memory:
256 MB

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Colour:
  • Black
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.4 mm
Width:
433.8 mm
Depth:
460 mm
Weight (Approximate):
10.95 kg

Miscellaneous

Package Contents:
  • N4032F Layer 3 Switch
  • 2 x Redundant 460W Power Supply Unit
Certifications & Standards:
Safety and Emissions:
  • Australia/New Zealand: ACMA RCA Class A
  • Canada: ICES Class A, cUL
  • China: CCC Class A; NAL
  • Europe: CE Class A
  • Japan: VCCI Class A
  • USA: FCC Class A; NRTL UL
  • Eurasia Customs Union: EAC
  • Germany: GS Mark
IEEE Standards:
  • 802.1AB
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1S
  • 802.1v
  • 802.1W
  • 802.1X
  • 802.2
  • 802.3
  • 802.3ab
  • 802.3ac
  • 802.3ad
  • 802.3ae
  • 802.3AX
  • 802.3az
  • 802.3u
  • 802.3x
  • 802.3z
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • EU WEEE
  • REACH

Warranty

Standard Warranty:
