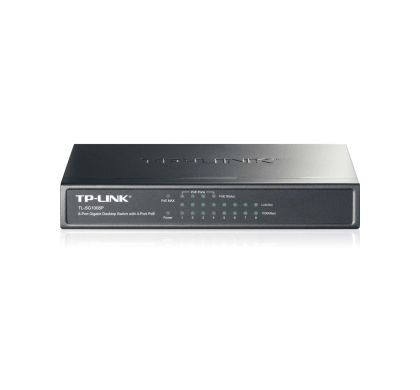

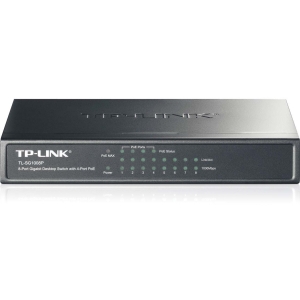

TP-LINK TL-SG1008P 8 Ports Ethernet Switch

TP-LINK TL-SG1008P 8 Ports Ethernet Switch
TL-SG1008P
Available
Please contact us for pricing

Description

What This Product Does

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement

TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Specifications

General Information

Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-SG1008P
Product Name:
TL-SG1008P Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
8
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE Ports:
4
Stack Port:
No
Number of Network (RJ-45) Ports:
4

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T

Network & Communication

Layer Supported:
2

Power Description

PoE Port:
No
Input Voltage:
  • 48 V DC
Power Source:
  • AC Adapter
Redundant Power Supply:
No

Physical Characteristics

Colour:
  • Black
Form Factor:
Desktop
Height:
27.9 mm
Width:
170.2 mm
Depth:
99.1 mm

Miscellaneous

Package Contents:
  • TL-SG1008P Ethernet Switch
  • Power Adapter
  • User Guide
Certifications & Standards:
  • FCC
  • CE
  • IEEE 802.3af
  • IEEE 802.3x
