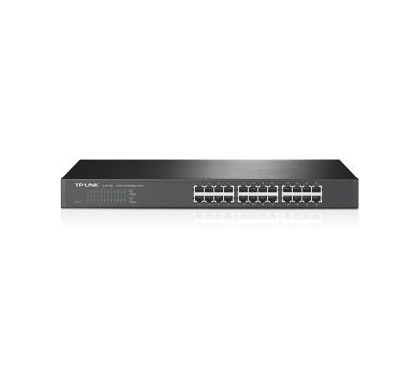

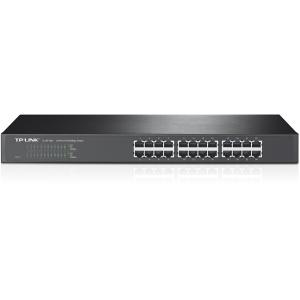

TP-LINK TL-SF1024 24 Ports Ethernet Switch
Description
TL-SF1024 24-port 10/100M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. Each port of the TL-SF1024 supports Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The Switch is Plug-and-Play and any port can be simply plugged into a server, a hub, a switch, a router, and so on, to expand your network.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-SF1024
Product Name:
TL-SF1024 24-port 10/100M Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
24
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
24 x Fast Ethernet Network
Media & Performance
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10/100Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.9 mm
Width:
180.3 mm
Depth:
439.4 mm
Miscellaneous
Package Contents:
- TL-SF1024 Ethernet Switch
- Power cord
- User Guide
- Mounting screws and other things
Additional Information:
- 19-inch Rack-Mountable Steel Case
- Transfer Method: Store-and-Forward
