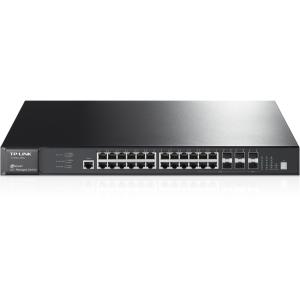

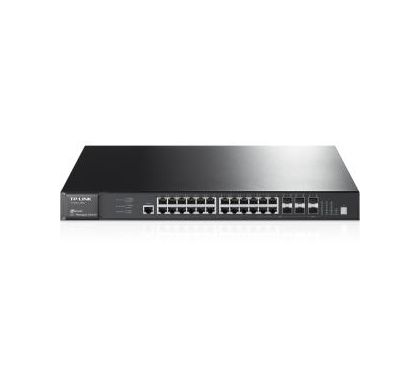

TP-LINK JetStream T2700G-28TQ 24 Ports Manageable Layer 3 Switch

T2700G-28TQ

This product has been discontinued by the manufacturer

Please visit

TP-LINK Switches & Bridges

for alternative options.

Description

TP-LINK's T2700G-28TQ is an L2+ managed switch designed to build a highly accessible, scalable, and robust network. The switch is equipped with 24 Gigabit RJ-45 ports, 4 Combo Gigabit SFP and up to 4 10Gbps SFP slots, giving network administrator great network flexibility. It supports basic Layer3 features like static routing and RIP v1/v2 by default and can be upgraded to support abundant Layer 3 features such OSPF/ECMP/PIM/VRRP with the addition of a Layer3 license. What's more, with physical stacking feature and optional redundant external power unit, T2700G-28TQ provides a robust network with efficient redundancy. T2700G-28TQ provides robust security to help secure your enterprise network.

TP-LINK's T2700G-28TQ L2+ managed switch provides a reliable and cost-effective solution for enterprise, campus and ISP networks.

Specifications

General Information

Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Family:
JetStream
Product Model:
T2700G-28TQ
Product Name:
JetStream 28-Port Gigabit Stackable L2+ Managed Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of Stack Ports:
2
Stack Port:
Yes
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Twisted Pair Cable Standard:
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP+
Shared SFP Slot:
Yes
Number of SFP+ Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • DHCP
    • VLAN
    • Web-based Management
    • CLI
    • RMON (1, 2, 3, 9 groups)
    • SNMP v1/v2c/v3
    • SNTP
    • Syslog
    • MIBS

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
  • Rack-mountable
  • Desktop
Height:
44 mm
Width:
440 mm
Depth:
330 mm

Miscellaneous

Certifications & Standards:
  • CE
  • FCC
IEEE Standards:
  • 802.3i
  • 802.3u
  • 802.3ab
  • 802.3z
  • 802.3ae
  • 802.3ad
  • 802.3x
  • 802.1d
  • 802.1s
  • 802.1w
  • 802.1q
  • 802.1x
  • 802.1p
Green Compliant:
Yes
