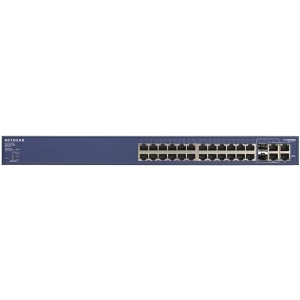

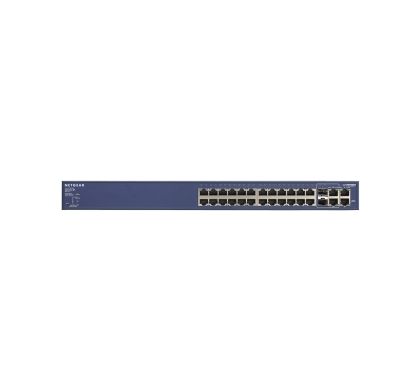

Netgear ProSafe FS728TP 24 Ports Manageable Ethernet Switch

FS728TP-200AJS

This product has been discontinued by the manufacturer

Please visit

NETGEAR Switches & Bridges

for alternative options.

Description

The FS728TP Smart Switch also provides the benefit of administrative management with a complete package of features for the observation, configuration, and control of the network. With a Web-based Graphical User Interface (GUI), you can view the switch's many features and use them in a simple and intuitive manner. The switch's management features include configuration for port and switch information, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization. These features provide better understanding and control of the network. Initial discovery of the switch on the network requires the SmartWizard Discovery program, a utility that runs on a PC.

Specifications

General Information

Manufacturer:
Netgear, Inc
Manufacturer Website Address:
http://www.netgear.com/
Brand Name:
Netgear
Product Family:
ProSafe
Product Model:
FS728TP
Product Name:
ProSafe FS728TP Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Number of PoE Ports:
24
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Expansion Slot
  • 4 x Gigabit Ethernet Uplink
  • 24 x Fast Ethernet Network

Media & Performance

Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • SNMP v1,v2c,v3
    • ProSafe Network Management Software (NMS200)
    • VLAN
    • QoS
    • DHCP
    • RMON 1,2,3,9
    • MIB
    • Syslog
    • Web-based Management

Power Description

PoE Port:
Yes
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
No

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Desktop
  • Rack-mountable
Height:
43.2 mm
Width:
439.4 mm
Depth:
256.5 mm
Weight (Approximate):
3.57 kg
