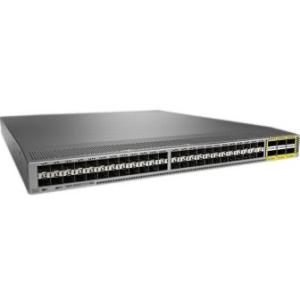

LINKSYS Cisco Nexus 3172PQ Manageable Layer 3 Switch

N3K-C3172PQ-10GE

This product has been discontinued by the manufacturer

Please visit

LINKSYS Switches & Bridges

for alternative options.

Description

The Cisco Nexus® 3172PQ Switch is a dense, high-performance Layer 2 and 3 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offers improved port density, scalability, and features compared to the first-generation switches. The Cisco Nexus 3172PQ comes in a compact one-rack-unit (1RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 3172PQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switch.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Nexus
Product Series:
3000
Product Model:
3172PQ
Product Name:
Nexus 3172PQ Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Uplink Port:
No
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 6 x 40 Gigabit Ethernet Expansion Slot
  • 48 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • 40 Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 40GBase-X
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
54
Expansion Slot Type:
  • QSFP+
  • SFP+
Number of SFP+ Slots:
48

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
500.4 mm
Depth:
439.4 mm
Weight (Approximate):
9.07 kg
