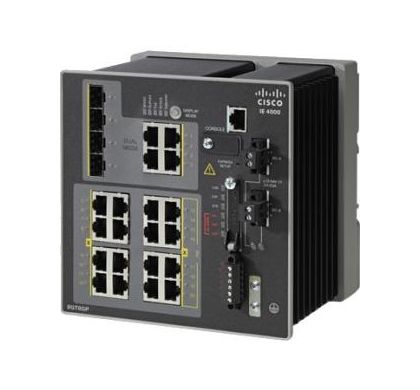

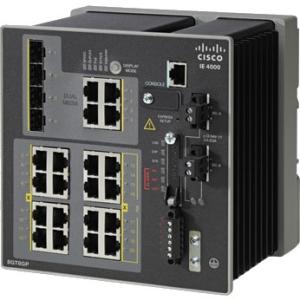

LINKSYS Cisco IE-4000-16T4G-E 16 Ports Manageable Ethernet Switch
Description
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4000
Product Model:
IE-4000-16T4G-E
Product Name:
IE-4000-16T4G-E Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
16
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
- 16 x Fast Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
- SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
Rail-mountable
Height:
155.4 mm
Width:
155.4 mm
Depth:
129.3 mm
Weight (Approximate):
2.88 kg
