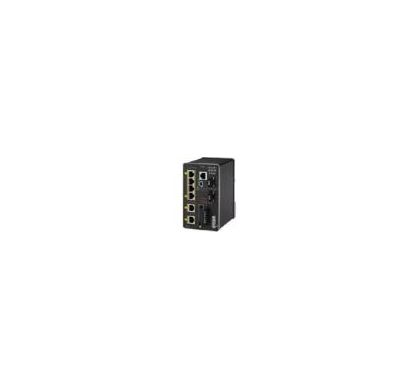

LINKSYS Cisco IE-2000-4S-TS-G-L Manageable Ethernet Switch

IE-2000-4S-TS-G-L
Please Call
Please contact us for pricing

Description

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).

Product Details

The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

  • Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
  • Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
  • Dual-input DC power supply, alarm relays, DIN rail mount
  • Industrial Power over Ethernet (PoE) solution
  • Conformal coating available
  • Swappable SD flash card and mini-USB connector
  • Industrial environmental compliance and certifications
  • Industrial partner applications: Ethernet/IP and PROFINET

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE-2000
Product Model:
IE-2000-4S-TS-G-L
Product Name:
IE-2000-4S-TS-G-L Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Uplink Port:
Yes
Port/Expansion Slot Details:
  • 4 x Fast Ethernet Expansion Slot
  • 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Optical Fiber
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 100Base-X
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
6
Expansion Slot Type:
  • SFP
Shared SFP Slot:
No
Number of SFP Slots:
6

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Desktop
  • Rail-mountable
Height:
129.5 mm
Width:
80 mm
Depth:
105.4 mm
Weight (Approximate):
1.22 kg
