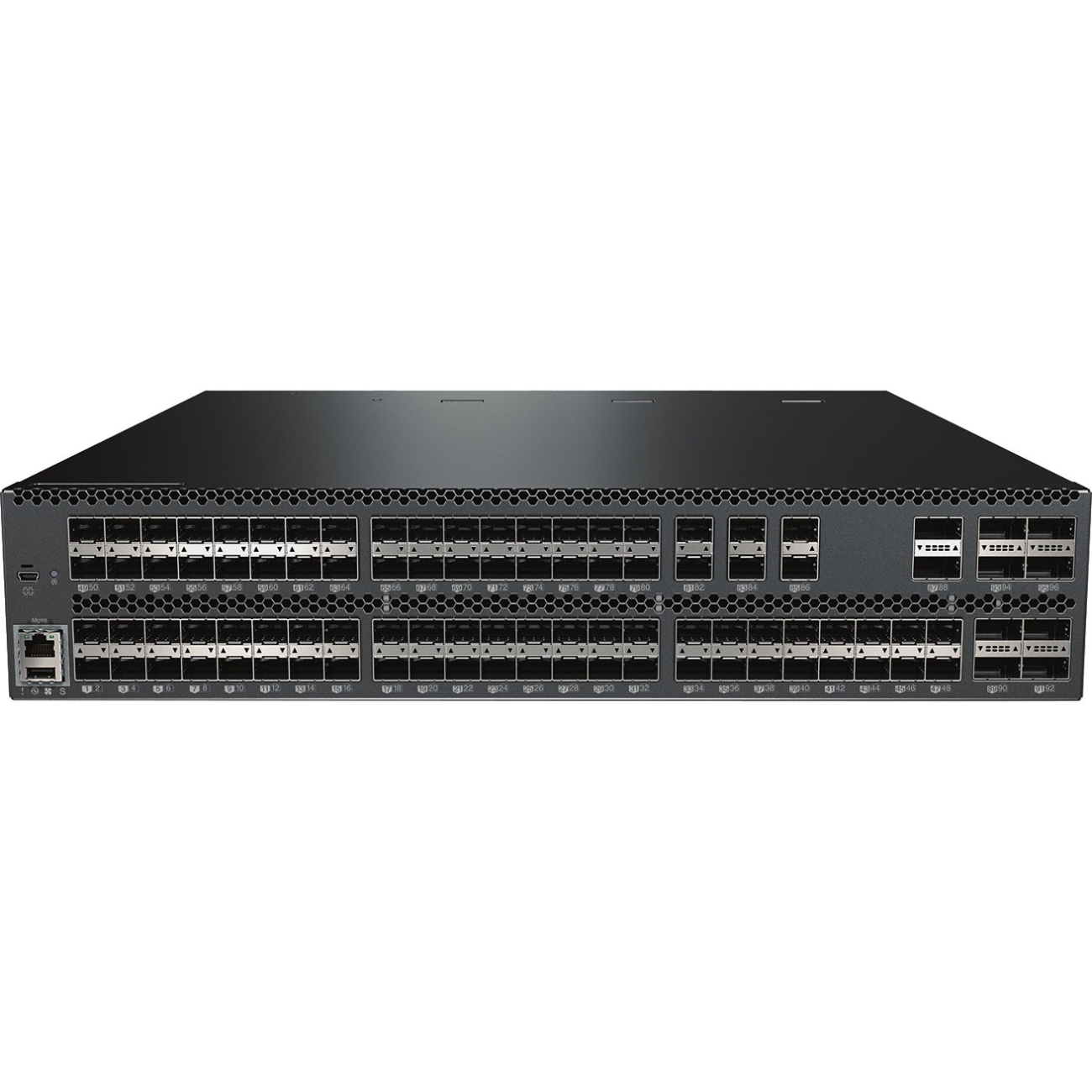

LENOVO RackSwitch G8296 Manageable Layer 3 Switch
Description
The Lenovo RackSwitch™ G8296 that leverages 10Gb SFP+ and 40Gb QSFP+ Ethernet technology is specifically designed for the data center. It is ideal for today's big data, cloud, and optimized workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data-center grade buffers help keep traffic moving, while the redundant hot-swap power supplies and fans along with numerous availability features help provide high availability for business sensitive traffic.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
RackSwitch
Product Model:
G8296
Product Name:
RackSwitch G8296 Layer 3 Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch
Interfaces/Ports
Uplink Port:
Yes
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
- 86 x 10 Gigabit Ethernet Expansion Slot
- 10 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 1000Base-SX
- 1000Base-LX
- 1000Base-T
- 10GBase-LR
- 10GBase-SR
- 10GBase-ER
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
96
Expansion Slot Type:
- QSFP+
- SFP+
Number of SFP+ Slots:
86
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
87 mm
Width:
571 mm
Depth:
442 mm
Weight (Approximate):
12.10 kg
