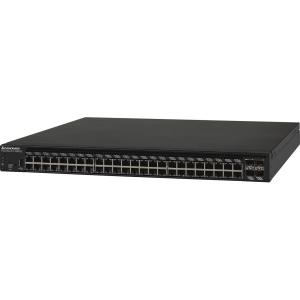

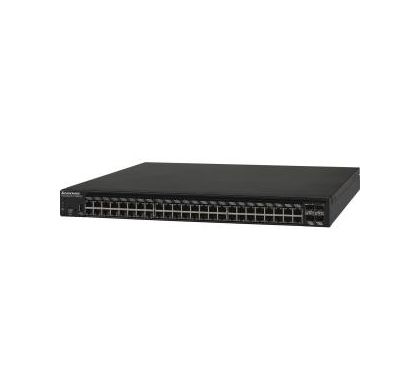

LENOVO RackSwitch G8052 48 Ports Ethernet Switch
Description
PERFORMANCE, VALUE, AVAILABILITY
The Lenovo RackSwitch G8052 features 48 x RJ-45 1 Gigabit Ethernet (GbE) ports plus 4 x SFP+ 10 GbE ports in a flexible 1U switch. All ports come standard, and the SFP+ ports can also support SFP 1 GbE if needed, Designed with top performance in mind, the G8052 provides line-rate, high- bandwidth switching, filtering, and traffic queuing without delaying data, and large data center-grade buffers to keep traffic moving. Redundant hot-swap power and fans, along with numerous high-availability features, mean that the G8052 is always available for business-sensitive traffic.
CLOUD PERFECT
The RackSwitch G8052 is virtualized-supporting VMready technology, an innova-tive, standards-based solution to manage virtual machines (VMs) in small to large-scale data center and cloud environ-ments. VMready works with all leading VM providers. The G8052 also features OpenFlow support to help easily create software defined virtual networks (SDN) and enables a remote controller to modify the behavior of network devices through a well-defined "forwarding instruction set."
COOL, EASY
The RackSwitch G8052 is cool-implementing a choice of direc-tional cooling to maximize data center layout and provisioning. Its superior airflow design complements the hot-aisle and cold-aisle data center cooling model.The RackSwitch G8052 is easy-with server-oriented provisioning via point-and-click management interfaces, along with the optional Switch Center software package for updating large groups of switches. And, the G8052 supports stacking for up to eight switches for simpli-fied switch management using a single IP management address.
The Lenovo RackSwitch G8052 features 48 x RJ-45 1 Gigabit Ethernet (GbE) ports plus 4 x SFP+ 10 GbE ports in a flexible 1U switch. All ports come standard, and the SFP+ ports can also support SFP 1 GbE if needed, Designed with top performance in mind, the G8052 provides line-rate, high- bandwidth switching, filtering, and traffic queuing without delaying data, and large data center-grade buffers to keep traffic moving. Redundant hot-swap power and fans, along with numerous high-availability features, mean that the G8052 is always available for business-sensitive traffic.
CLOUD PERFECT
The RackSwitch G8052 is virtualized-supporting VMready technology, an innova-tive, standards-based solution to manage virtual machines (VMs) in small to large-scale data center and cloud environ-ments. VMready works with all leading VM providers. The G8052 also features OpenFlow support to help easily create software defined virtual networks (SDN) and enables a remote controller to modify the behavior of network devices through a well-defined "forwarding instruction set."
COOL, EASY
The RackSwitch G8052 is cool-implementing a choice of direc-tional cooling to maximize data center layout and provisioning. Its superior airflow design complements the hot-aisle and cold-aisle data center cooling model.The RackSwitch G8052 is easy-with server-oriented provisioning via point-and-click management interfaces, along with the optional Switch Center software package for updating large groups of switches. And, the G8052 supports stacking for up to eight switches for simpli-fied switch management using a single IP management address.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
RackSwitch
Product Model:
G8052
Product Name:
RackSwitch G8052
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
48
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-LRM
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
- SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
2
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Width:
439.4 mm
Depth:
444.5 mm
Weight (Approximate):
5.45 kg
Warranty
Standard Warranty:
3 Year
