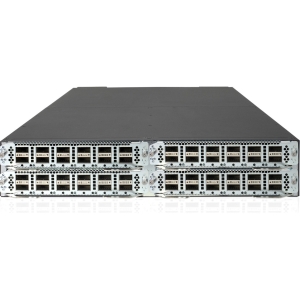

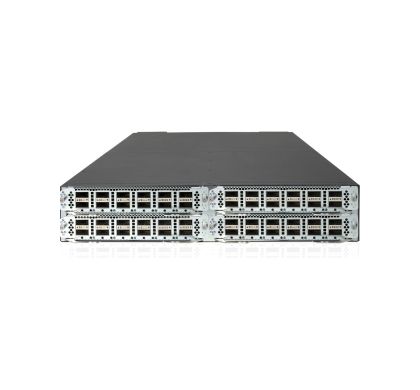

HPE HP FlexFabric 7904 Manageable Switch Chassis

HPE HP FlexFabric 7904 Manageable Switch Chassis
JG682A
Please Call
Please contact us for pricing

Description

HP FlexFabric 7900 Modular Core Switch is a compact modular data center core switch supporting virtualized data centers and evolutionary needs of private and public clouds deployments. Delivering unprecedented levels of performance, buffering, scale, and availability with high density 10GbE, 40GbE and 100GbE interfaces at a lower cost, using only a fraction of the footprint used by traditional chassis. The switch supports full Layer 2 and 3 features, including advanced features such as TRILL and HP Intelligent Resilient Fabric (IRF), which enable scale-out, two-tier leaf-spine architecture

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Family:
FlexFabric
Product Series:
7900
Product Model:
7904
Product Name:
FlexFabric 7904 Switch Chassis
Packaged Quantity:
1
Product Type:
Switch Chassis

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Management Port:
Yes
Port/Expansion Slot Details:
4 x Expansion Slot

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • Network Interface Module (NIM)

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • DHCP
    • SNMP v1, v2, v3
    • CLI
    • sFlow
    • MIB
    • RMON
    • SSH v2
    • IMC
    • Telnet

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR2 SDRAM
Flash Memory:
1 GB

Power Description

PoE Port:
No

Physical Characteristics

Compatible Rack Unit:
2U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
88.1 mm
Width:
439.9 mm
Depth:
720.1 mm
Weight (Approximate):
22.70 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1
  • FDA 21 CFR Subchapter J
  • AS/NZS 60950-1
Emissions:
  • VCCI Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • IEC/EN 61000-3-2
  • IEC/EN 61000-3-3
  • ICES-003 Class A
  • AS/NZS CISPR 22 Class A
  • FCC (CFR 47, Part 15) Class A
  • ETSI EN 300 386
IEEE Standards:
  • 802.1ad Q-in-Q
  • 802.1p Priority
  • 802.1Q VLANs
  • 802.1s Multiple Spanning Trees
  • 802.1w Rapid Reconfiguration of Spanning Tree
  • 802.1X PAE
  • 802.3ab 1000BASE-T
  • 802.3ac (VLAN Tagging Extension)
  • 802.3ad Link Aggregation Control
  • Protocol (LACP)
  • 802.3ae 10-Gigabit Ethernet
  • 802.3x Flow Control
  • 802.3z 1000BASE-X
  • 802.3ah
  • 802.3ba
Green Compliant:
Yes
