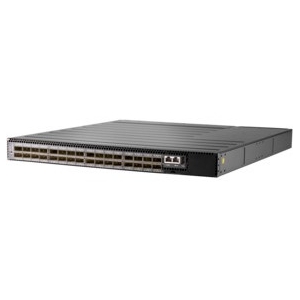

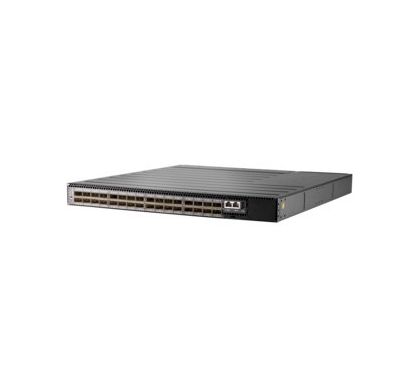

HPE HP Altoline Manageable Layer 3 Switch
Description
The HPE Altoline 6940 Switch Series are top-of-rack (TOR) or spine switches for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across up to 32 x QSFP ports, supporting 10GbE or 40GbE server connections as a ToR switch, or 10GbE or 40GbE spine interconnects as a spine switch.
The 32 fixed QSFP ports support up to 32 x 40GbE connections or 96 x 10GbE with 8 x 40GbE uplink connections.
The HPE Altoline 6940 Switch Series are bare-metal switches loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.
The 32 fixed QSFP ports support up to 32 x 40GbE connections or 96 x 10GbE with 8 x 40GbE uplink connections.
The HPE Altoline 6940 Switch Series are bare-metal switches loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Family:
Altoline
Product Series:
6940
Product Name:
Altoline 6940 32QSFP+ x86 ONIE AC Front-to-Back Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
- 24 x 40 Gigabit Ethernet Expansion Slot
- 8 x 40 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Optical Fiber
Ethernet Technology:
- 40 Gigabit Ethernet
Network Technology:
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
32
Expansion Slot Type:
- QSFP+
Shared SFP Slot:
No
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
469.9 mm
Depth:
439.9 mm
Weight (Approximate):
8.40 kg
Miscellaneous
Green Compliant:
Yes
