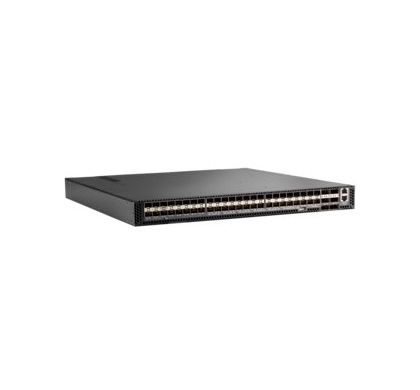

HPE HP Altoline Manageable Ethernet Switch

The HPE Altoline 6920 Switch Series is an x86-based OCP certified, open-networking, disaggregated family of low-latency 10GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access switch; optimized for data center hot/cold aisle deployments with reversible airflow. Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.

What's new

• High 10GbE port density and low latency for demanding applications.

• OCP-certified, ONIE boot loader, choice of network OS, easy installation.

• Intel x86 CPU, Open-networking and disaggregated solution.

• VXLAN for efficient network virtualization overlay solutions.

• 10GbE/40GbE, redundant fans and power supplies for data center deployments.

Features

Open and Disaggregated Networking for Choice

The HPE Altoline 6920 Switch Series is an OCP certified, open-networking, disaggregated solution that offers customers choice of hardware platforms and network operating systems (NOS).

Includes the Open Network Install Environment (ONIE) loader for easy installation of the network operating system.

You have a choice of network OS including Cumulus Networks Linux NOS.

Offers a choice of management and orchestration tools from growing ecosystem.

Intel x86 CPU subsystem provides ability to load common 3rd party applications and utilities

Wire Speed of 10GbE and 40GbE for Scalability and demanding applications

The HPE Altoline 6920 Switch Series provides high density of 48 x 10GbE and 6 x 40GbE fiber uplink ports for high-performance and flexible deployments.

Supports up to 48 x 10GbE links for server scalability with 6 x 40GbE uplinks.

With hardware VXLAN VTEP support the switch works well for multi-tenancy and overlay technologies.

Provides the flexibility for 10GbE top-of-rack deployments.

High-performance Data Center Switching

The HPE Altoline 6920 Switch Series delivers 1.44 Tbps switching capacity for the most demanding applications.

The switch supports up to 1 BPPS throughput for data intensive environments.

Ultra fast 40 Gbps Latency > .6 µs for amazing response time

With up to 6 x 40GbE QSFP+ ports the switch has a solution for blazing fast uplinks.

The redundant power supplies and fans combat temperature issues in hot/cold isles deployments.
