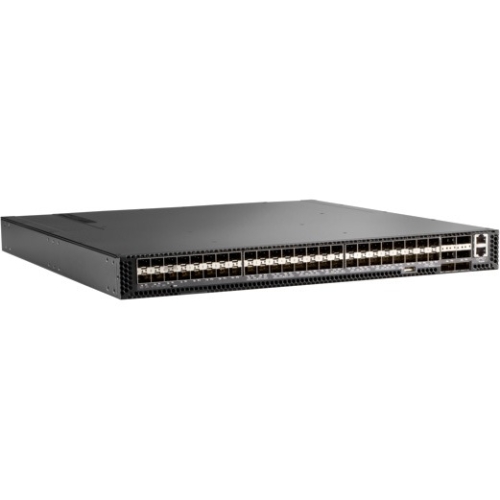

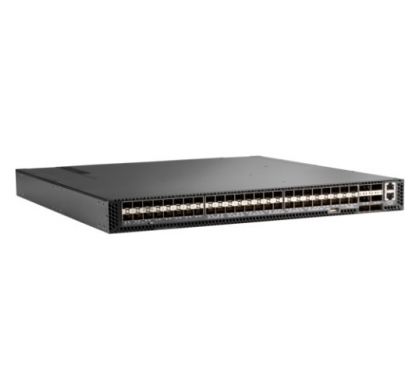

HPE HP Altoline Manageable Ethernet Switch
Description
The HPE Altoline 6920 Switch Series is an x86-based OCP certified, open-networking, disaggregated family of low-latency 10GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access switch; optimized for data center hot/cold aisle deployments with reversible airflow. Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.
What's new
- High 10GbE port density and low latency for demanding applications.
- OCP-certified, ONIE boot loader, choice of network OS, easy installation.
- Intel x86 CPU, Open-networking and disaggregated solution.
- VXLAN for efficient network virtualization overlay solutions.
- 10GbE/40GbE, redundant fans and power supplies for data center deployments.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Family:
Altoline
Product Series:
6920
Product Name:
Altoline 6920 48XG 6QSFP+ x86 ONIE AC Back-to-Front Switch
Packaged Quantity:
1
Product Type:
Ethernet Switch
Interfaces/Ports
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 6 x 40 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Optical Fiber
Ethernet Technology:
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 40GBase-X
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
54
Expansion Slot Type:
- SFP+
- QSFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
48
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
469.9 mm
Weight (Approximate):
8.40 kg
Miscellaneous
Green Compliant:
Yes
