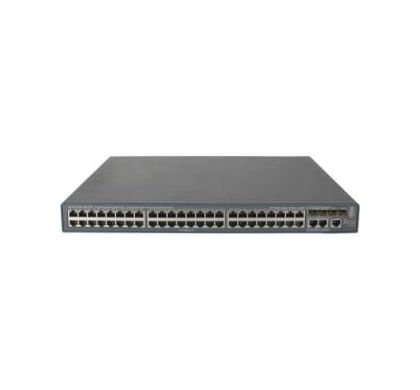

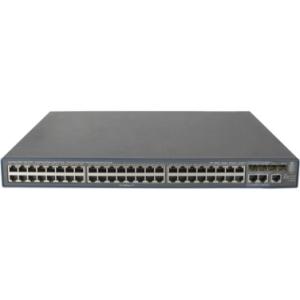

HPE HP 3600-48-PoE+ v2 SI 48 Ports Manageable Layer 3 Switch

JG307C
Please Call
Please contact us for pricing

Description

The HP 3600 SI Switch Series delivers intelligent, resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Fast Ethernet and PoE/PoE+ switches, with features that can accommodate large enterprise and SMB applications. The switches deliver secure, resilient connectivity as well as the latest traffic-prioritization technologies to enhance converged networks. And they are designed for improved flexibility and scalability.

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Series:
3600 SI
Product Model:
3600-48-PoE+ v2 SI
Product Name:
3600-48-PoE+ v2 SI Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of PoE+ Ports:
48
Number of Network (RJ-45) Ports:
2
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
  • 48 x Fast Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
  • IMC - Intelligent Management Center
  • Command-line Interface
  • Web Browser
  • SNMP Manager
  • QoS
  • SNMP v1, v2c, and v3
  • Remote monitoring (RMON)
  • VLAN
  • sFlow
  • Telnet
  • DHCP
  • MIB
  • SSH v2

Memory

Standard Memory:
  • 256 MB
Memory Technology:
SDRAM
Flash Memory:
128 MB

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
420.1 mm
Weight (Approximate):
10 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • EN 60825-1
  • EN 60825-2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
Emissions:
  • FCC part 15 Class A
  • VCCI Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • ICES-003 Class A
  • ANSI C63.4 2003
  • ETSI EN 300 386 V1.3.3
  • AS/NZS CISPR22 Class A
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-11
  • EN 61000-3-2:2006
  • EN 61000-3-3:1995 +A1:2001+A2:2005
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.1AB
  • 802.3ad
  • 802.1X
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1v
  • 802.1w
  • 802.3ac
  • 802.3i
  • 802.3z
  • 802.3at
Green Compliant:
Yes
