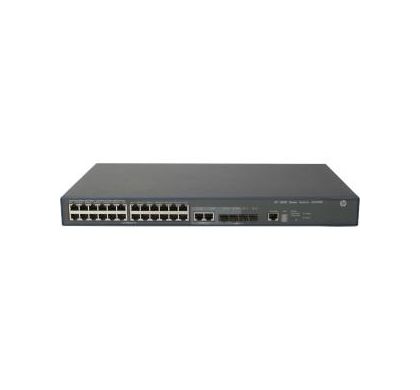

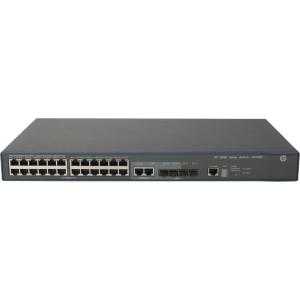

HPE HP 3600-24 v2 EI 26 Ports Manageable Layer 3 Switch

HPE HP 3600-24 v2 EI 26 Ports Manageable Layer 3 Switch
JG299B
Please Call
Please contact us for pricing

Description

The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of L3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate some of the most demanding applications.

The 3600 EI Switch Series offers secure, resilient connectivity and the latest traffic-prioritization technologies to enhance converged networks. Designed for increased flexibility and scalability, the series offers you 24 or 48 10/100 ports, four active SFP- based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP
slots.

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Series:
3600 EI
Product Model:
3600-24 v2 EI
Product Name:
3600-24 v2 EI Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
26
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of Network (RJ-45) Ports:
26
Port/Expansion Slot Details:
  • 24 x Fast Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
  • 2 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100Base-TX
  • 1000Base-X
  • 10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • sFlow
    • DHCP
    • VLAN
    • Remote monitoring (RMON)
    • SNMPv1, v2c, and v3
    • Web Bowser
    • CLI
    • Telnet
    • SSHv2
    • MIB
    • QoS

Memory

Standard Memory:
  • 256 MB
Memory Technology:
SDRAM
Flash Memory:
128 MB

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
260.1 mm
Weight (Approximate):
5 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • EN 60825-1
  • EN 60825-2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
Emissions:
  • FCC part 15 Class A
  • VCCI Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • ICES-003 Class A
  • ANSI C63.4 2003
  • ETSI EN 300 386 V1.3.3
  • AS/NZS CISPR22 Class A
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-11
  • EN 61000-3-2:2006
  • EN 61000-3-3:1995 +A1:2001+A2:2005
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ad
  • 802.1Q
  • 802.1X
  • 802.1AB
Green Compliant:
Yes
