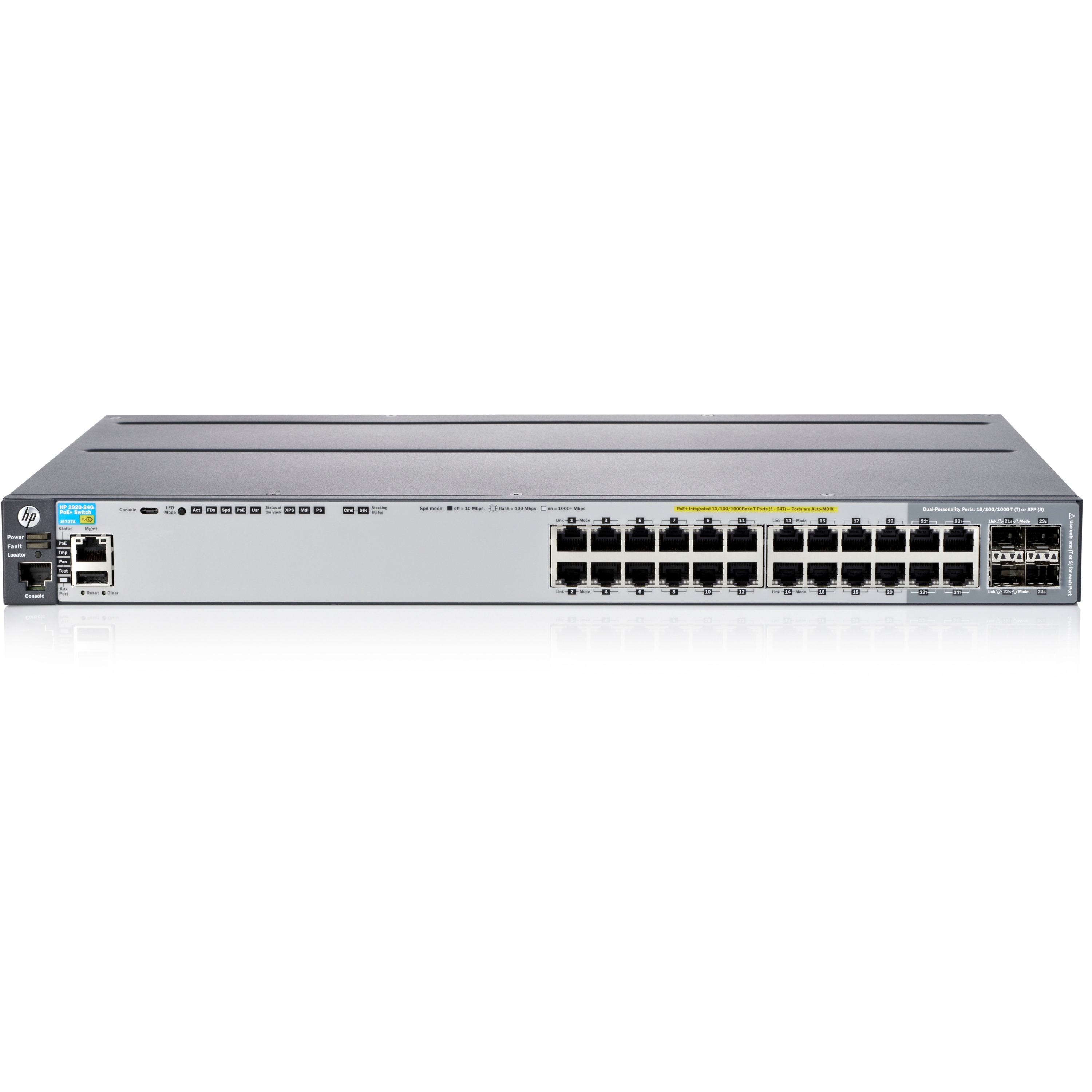

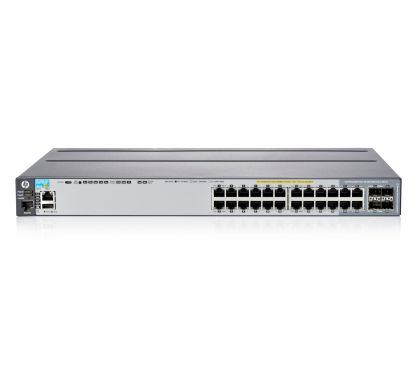

HPE HP 2920-24G-PoE+ 24 Ports Manageable Layer 3 Switch - Refurbished

HPE HP 2920-24G-PoE+ 24 Ports Manageable Layer 3 Switch - Refurbished
J9727AR

This product has been discontinued by the manufacturer

Please visit

HPE Switches & Bridges

for alternative options.

Description

Product overview

The HP 2920 Switch Series consists of four switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.

In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.

Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2920 switch series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Series:
2920
Product Model:
2920-24G-PoE+
Product Name:
2920-24G-POE+ Switch
Product Condition:
Refurbished
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Number of PoE+ Ports:
24
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 3 x Expansion Slot
  • 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
7
Expansion Slot Type:
  • SFP
  • Stacking Module
Shared SFP Slot:
Yes
Number of SFP Slots:
4

Network & Communication

Layer Supported:
4

Management & Protocols

Manageable:
Yes
Management:
  • IMC - Intelligent Management Center
  • Command Line Interface (CLI)
  • Web-based Management
  • SNMP v1/2c/3
  • Telnet
  • RMON
  • QoS
  • DHCP
  • VLAN
  • MIB
  • sFlow
  • Find-Fix-Inform
  • XRMON

Memory

Standard Memory:
  • 512 MB
Memory Technology:
SDRAM
Flash Memory:
1 GB

Power Description

PoE Port:
Yes
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
44.5 mm
Width:
442.5 mm
Depth:
336 mm
Weight (Approximate):
5.46 kg

Miscellaneous

Certifications & Standards:
Safety:
  • CE
  • EN 60825-1
  • FCC Part 15
  • EN 55022 Class A
  • EN 55024: 1998
  • C-Tick
  • ICES-003, Class A
  • VCCI
  • Class A
  • IEC 60950-1 :Second Edition
  • IEC 60825-1
  • EN62479:2010
  • CSA C22.2 No.
  • 60950-1-07 2nd Edition
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011
  • IEC
  • 60950-1 (ed.2): am1
Emissions:
  • FCC part 15 Class A
  • VCCI Class A
  • EN 55022/CISPR 22 Class A
Immunity:
  • EN 55024, CISPR 24
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-8
  • IEC 61000-4-11
  • IEC 61000-3-2
  • IEC 61000-3-3
  • IEC 60825-1
IEEE Standards:
  • 802.1AX
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1v
  • 802.1w
  • 802.3ab
  • 802.3ad
  • 802.3af
  • 802.3at
  • 802.3az
  • 802.3x
Green Compliance Certificate/Authority:
  • RoHS
  • 80 Plus
