HP ProCurve 6410cl-6XG 6 Ports Manageable Ethernet Switch

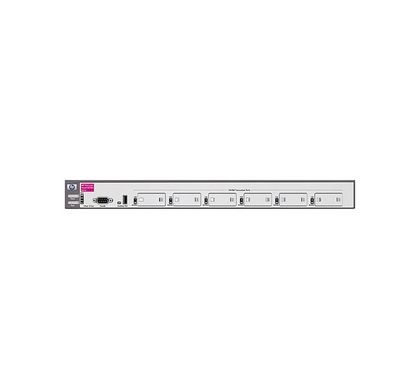

HP ProCurve 6410cl-6XG 6 Ports Manageable Ethernet Switch Front
J8474A

This product has been discontinued by the manufacturer

Please visit

HP Switches & Bridges

for alternative options.

Description

ProCurve switch 6410cl is a low-cost, full Layer 3, 10GbE stackable switch that supports all fiber and copper standards. It is ideal for building cost efficient small to medium network or aggregate high performance, high throughput application servers and workstations.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProCurve
Product Model:
6410cl-6XG
Product Name:
ProCurve 6410cl-6XG Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
6
Management Port:
Yes

Media & Performance

Ethernet Technology:
  • 10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Slots:
6

Management & Protocols

Manageable:
Yes
Management:
  • Telnet
  • Web browser
  • Configuration Menu
  • ProCurve Manager
  • ProCurve Manager Plus
  • Command Line Management
  • Out-Of-Band Management (serial RS-232C)
  • Simple Network Management Protocol (SNMP)
  • Remote Monitoring (RMON)

    • Power Description

    Power Source:
    • Power Supply
    Redundant Power Supply:
    Yes

    Physical Characteristics

    Form Factor:
    Rack-mountable
    Height:
    43.0 mm
    Width:
    429.0 mm
    Depth:
    442.0 mm
    Weight (Approximate):
    6.10 kg

    Miscellaneous

    Package Contents:
  • ProCurve 6410cl-6XG Switch
  • Rack or equipment cabinet
  • ProCurve Manager
    • Additional Information:
    • Supports a maximum of 8 10-GbE ports
    • Latency: < 11.7 µs (LIFO 64-byte packets)
    • Horizontal surface mounting only
    Certifications & Standards:
  • RFC 1492
  • RFC 2674
  • RFC 783
  • RFC 951
  • RFC 1542
  • RFC 854
  • RFC 768
  • RFC 792
  • RFC 793
  • RFC 826
  • RFC 2030
  • RFC 3376
  • RFC 2453
  • RFC 2328
  • RFC 2138
  • RFC 2866
  • RFC 1058 RIP
  • RFC 1213 MIB II
  • RFC 3164 Syslog
  • RFC 2613 SMON
  • RFC 2737 Entity MIB
  • RFC 1724 RIPv2 MIB
  • RFC 1493 Bridge MIB
  • RFC 2665 Ethernet MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 1850 OSPF MIB
  • RFC 2618 RADIUS Client MIB
  • RFC 2863 Evolution of Interface
  • RFC 2474 DiffServ Precedence
  • RFC 2819 Four groups of RMON
  • RFC 2620 RADIUS Accounting MIB
  • RFC 2096 IP Forwarding Table MIB
  • RFC 2021 RMON probe configuration
  • RFC 2597 DiffServ Expedited Forwarding (EF)
  • RFC 2598 DiffServc Assured Forwarding (AF)
    • IEEE Standards:
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3x
  • IEEE 802.1ad
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.1s
  • IEEE 802.3ak
  • IEEE 802.1v
    • Electromagnetic Emissions:
  • FCC Class A
  • VCCI Class A
  • EN 55022:1998/CISPR-22:1997 Class A
    • Safety:
  • UL 60950
  • EN 60950/IEC 60950
  • CSA 22.2 No. 60950

    • Warranty

    Standard Warranty:
