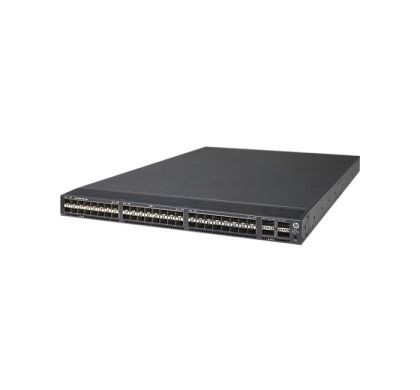

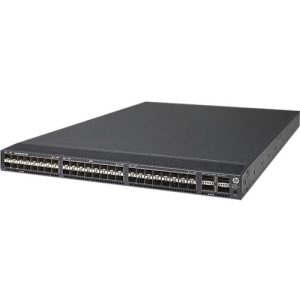

HP FlexFabric 5900CP-48XG-4QSFP+ Manageable Layer 3 Switch
Description
The HP 5900 Switch Series is a family of high-density, ultra-low-latency, top-of-rack (ToR) switches that is part of the HP FlexNetwork architecture's HP FlexFabric solution.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.
Specifications
General Information
Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
FlexFabric
Product Series:
5900
Product Model:
5900CP-48XG-4QSFP+
Product Name:
FlexFabric 5900CP-48XG-4QSFP+ Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Management Port:
Yes
USB:
Yes
Port/Expansion Slot Details:
- 4 x 40 Gigabit Ethernet Expansion Slot
- 48 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 40GBase-X
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
52
Expansion Slot Type:
- SFP+
- QSFP+
Number of SFP+ Slots:
48
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- DHCP
- SSH v1/v2
- Telnet
- Syslog
- SNMP v1/v2c/v3
- MIB
- VLAN
- CLI
- sFlow
- Remote Management
- Web Based Management
Memory
Standard Memory:
- 2 GB
Memory Technology:
SDRAM
Flash Memory:
512 MB
Power Description
PoE Port:
No
Input Voltage:
- 220 V AC
- 110 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Desktop
- Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
659.9 mm
