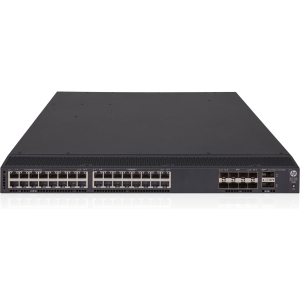

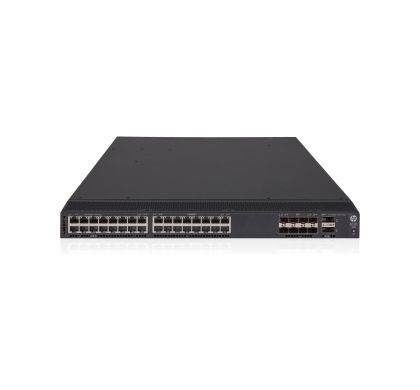

HP FlexFabric 5700-32XGT-8XG-2QSFP+ 32 Ports Manageable Layer 3 Switch

JG898A
Please Call
Please contact us for pricing

Description

The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come hand-in-hand with the FlexFabric 5700.

While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
FlexFabric
Product Series:
5700
Product Model:
5700-32XGT-8XG-2QSFP+
Product Name:
FlexFabric 5700-32XGT-8XG-2QSFP+ Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
32
Token Ring Port:
No
LRE Port:
No
Management Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
32
Port/Expansion Slot Details:
  • 2 x 40 Gigabit Ethernet Expansion Slot
  • 8 x 10 Gigabit Ethernet Expansion Slot
  • 32 x 10 Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • 40 Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10GBase-T
  • 40GBase-X

I/O Expansions

Number of Total Expansion Slots:
10
Expansion Slot Type:
  • SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
8

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • IMC
    • CLI
    • sFlow
    • Telnet
    • SSH
    • DHCP
    • Web Based Management
    • SNMP v1, v2c, v3

Memory

Standard Memory:
  • 2 GB
Memory Technology:
SDRAM
Flash Memory:
512 MB

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Desktop
  • Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
660 mm
Weight (Approximate):
13 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • EN 60825-1 Safety of Laser Products-Part 1
  • EN 60825-2 Safety of Laser Products-Part 2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • Anatel
  • ULAR
  • GOST
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
  • NOM
Emissions:
  • VCCI Class A
  • EN 55022 Class A
  • ICES-003 Class A
  • ANSI C63.4 2003
  • AS/NZS CISPR 22 Class A
  • EN 61000-3-2:2006
  • EN 61000-3-3:1995 +A1:2001+A2:2005
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
Immunity:
  • ETSI EN 300 386 V1.3.3
  • EN 55024:1998+ A1:2001 + A2:2003
  • EN 61000-4-2
  • IEC 61000-4-2
  • EN 61000-4-3
  • IEC 61000-4-3
  • EN 61000-4-4
  • IEC 61000-4-4
  • EN 61000-4-5
  • IEC 61000-4-5
  • EN 61000-4-6
  • IEC 61000-4-6
  • IEC 61000-4-8
  • EN 61000-4-8
  • EN 61000-4-11
  • IEC 61000-4-11
  • EN 61000-3-2
  • IEC 61000-3-2
  • EN 61000-3-3
  • IEC 61000-3-3
IEEE Standards:
  • 802.1ad
  • 802.1ag
  • 802.1D
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3ab
  • 802.3ad
  • 802.3ae
  • 802.3ag
  • 802.3ah
  • 802.3x
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
1 Year
