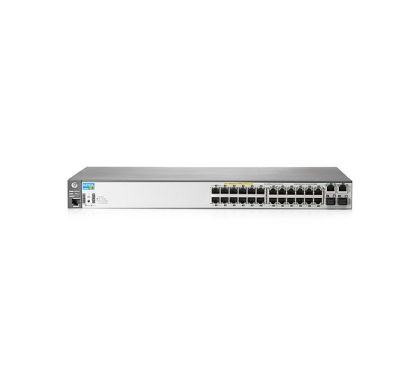

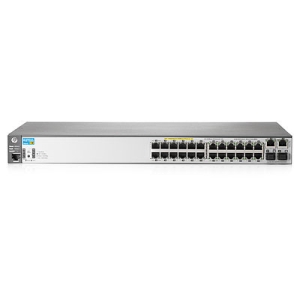

HP E2620-24-PPoE+ 24 Ports Manageable Layer 3 Switch

HP E2620-24-PPoE+ 24 Ports Manageable Layer 3 Switch
J9624A

This product has been discontinued by the manufacturer

Please visit

HP Switches & Bridges

for alternative options.

Description

The HP E2620 Switch Series consists of five switches with 10/100 connectivity. The HP E2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployment in open spaces. The HP E2620-24-PPoE+ Switch, HP E2620-24-PoE+ Switch, and HP E2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant and provide up to 30 W per powered port. All E2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPV4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP E2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
E2620
Product Model:
E2620-24-PPoE+
Product Name:
E2620-24-PPoE+ Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Number of PoE+ Ports:
12
Number of Network (RJ-45) Ports:
12
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Expansion Slot
  • 2 x Gigabit Ethernet Uplink
  • 24 x Fast Ethernet Network

Media & Performance

Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Number of SFP Slots:
2

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • QoS
    • DHCP
    • Web-based Management
    • SNMP v1, v2c, v3
    • RMON 1, 2, 3, 9
    • sFlow
    • CLI
    • MIB
    • VLAN
    • Telnet

Memory

Standard Memory:
  • 512 MB
Memory Technology:
SDRAM
Flash Memory:
512 MB

Power Description

PoE Port:
Yes
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Wall Mountable
  • Desktop
  • Rack-mountable
Height:
43.9 mm
Width:
443 mm
Depth:
254 mm
Weight (Approximate):
3.19 kg
