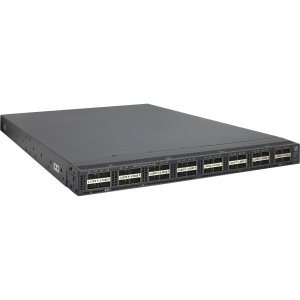

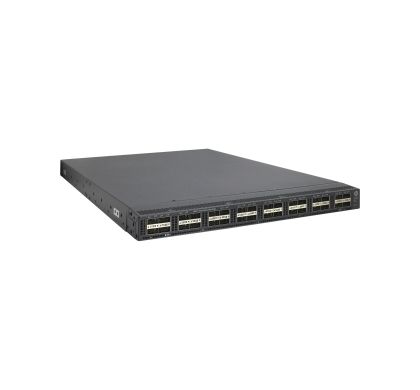

HP 5930-32QSFP+ Manageable Layer 3 Switch
Description
The HP FlexFabric 5930 Switch Series is a family of high performance and ultra-low-latency 40 GbE top-of-rack (ToR) data center switches. The switch series is part of the HP FlexFabric data center solution, which is a cornerstone of the FlexNetwork architecture.
The FlexFabric 5930 Switch Series is ideally suited for deployment at the aggregation or server access layer of large enterprise data centers, or at the core layer of medium-sized enterprises data centers.
With the increase pace of deploying virtualized applications, adopting software-defined networking, and the and server-to-server traffic, many data centers now require spine and ToR switch innovations that will meet their requirements. The HP FlexFabric 5930 is optimized to meet the increasing requirements for higher performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-lowlatency.
The FlexFabric 5930 Switch Series is ideally suited for deployment at the aggregation or server access layer of large enterprise data centers, or at the core layer of medium-sized enterprises data centers.
With the increase pace of deploying virtualized applications, adopting software-defined networking, and the and server-to-server traffic, many data centers now require spine and ToR switch innovations that will meet their requirements. The HP FlexFabric 5930 is optimized to meet the increasing requirements for higher performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-lowlatency.
Specifications
General Information
Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
5930
Product Model:
5930-32QSFP+
Product Name:
FlexFabric 5930-32QSFP+ Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Management Port:
Yes
USB:
Yes
Port/Expansion Slot Details:
32 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
- 40 Gigabit Ethernet
Network Technology:
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots:
32
Expansion Slot Type:
- QSFP+
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- SNMP v1, v2c, v3
- Remote Management
- sFlow
- CLI
- DHCP
- VLAN
- Telnet
- Web Based Management
Memory
Standard Memory:
- 4 GB
Memory Technology:
SDRAM
Flash Memory:
512 MB
Power Description
PoE Port:
No
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
659.9 mm
Weight (Approximate):
13 kg
