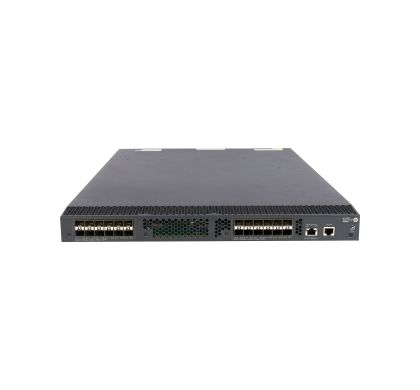

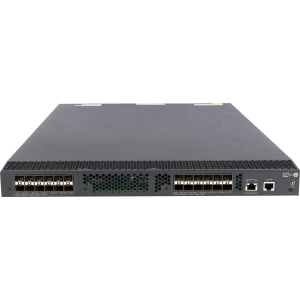

HP 5920AF-24XG Manageable Layer 3 Switch

JG296A
Please Call
Please contact us for pricing

Description

The HP 5920 Switch Series is made up of high-density 10 GbE, ultra-deep packet buffering, top-of-rack (ToR) switches. The series switches are part of the HP FlexFabric solution module of the HP FlexNetwork architecture and are ideally suited for deployments at the server access layer of large enterprise data centers. They are also designed for content delivery networks, especially when used to eliminate network congestion at the I/O that is associated with the heavy use of server virtualization, as well as bursty multimedia, storage applications, and other critical services. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-deep packet buffering all in a single device.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
5920
Product Model:
5920AF-24XG
Product Name:
5920AF-24XG Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Bypass:
No
Management Port:
Yes
Stack Port:
No
Port/Expansion Slot Details:
24 x 10 Gigabit Ethernet Network

Media & Performance

Ethernet Technology:
  • 10 Gigabit Ethernet
  • Gigabit Ethernet

I/O Expansions

Number of Total Expansion Slots:
24
Expansion Slot Type:
  • SFP+
Number of SFP+ Slots:
24

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • Intelligent Management Center
    • Command-line Interface
    • SNMPv1, v2c, and v3
    • Telnet
    • QoS

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
659.9 mm
Weight (Approximate):
13 kg

Miscellaneous

Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1D
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.3ad
  • IEEE 802.3ae
Safety:
  • UL 60950-1
  • EN 60825-1 Safety of Laser Products-Part 1
  • EN 60825-2 Safety of Laser Products-Part 2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • Anatel
  • ULAR
  • GOST
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
  • NOM
Emissions:
  • VCCI Class A
  • EN 55022 Class A
  • ICES-003 Class A
  • ANSI C63.4 2003
  • AS/NZS CISPR22 Class A
  • EN 61000-3-2:2006
  • EN 61000-3-3:1995 +A1:2001+A2:2005
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
Immunity:
  • ETSI EN 300 386 V1.3.3
  • EN 55024:1998+ A1:2001 + A2:2003
  • EN 61000-4-2
  • IEC 61000-4-2
  • EN 61000-4-3
  • IEC 61000-4-3
  • EN 61000-4-4
  • IEC 61000-4-4
  • EN 61000-4-5
  • IEC 61000-4-5
  • EN 61000-4-6
  • IEC 61000-4-6
  • IEC 61000-4-8
  • EN 61000-4-8
  • EN 61000-4-11
  • IEC 61000-4-11
  • EN 61000-3-2
  • IEC 61000-3-2
  • EN 61000-3-3
  • IEC 61000-3-3
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH
  • WEEE

Warranty

Standard Warranty:
1 Year
