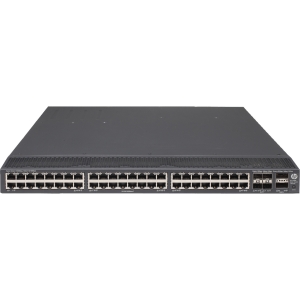

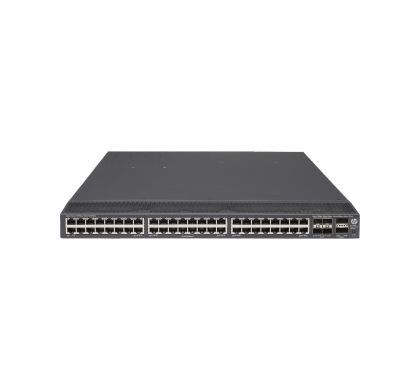

HP 5900AF-48G-4XG-2QSFP+ 48 Ports Manageable Layer 3 Switch
Description
The HP 5900 Switch Series is a family of high-density, ultra-low-latency, top-of-rack (ToR) switches that is part of the HP FlexNetwork architecture's HP FlexFabric solution.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HP 5900 Switch Series is also powerful enough for deployment at the data center core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single device.
Specifications
General Information
Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Model:
5900AF-48G-4XG-2QSFP+
Product Name:
5900AF-48G-4XG-2QSFP+ Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Management Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
- 2 x 40 Gigabit Ethernet Expansion Slot
- 4 x 10 Gigabit Ethernet Expansion Slot
- 48 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
6
Expansion Slot Type:
- QSFP+
- SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- IMC - Intelligent Management Center
- CLI
- Telnet
- SNMP v1, v2c, v3
- QoS
- VLAN
- DHCP
- MIB II
- Syslog
Memory
Standard Memory:
- 2 GB
Memory Technology:
SDRAM
Flash Memory:
512 MB
Power Description
PoE Port:
No
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Colour:
- Grey
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
460 mm
Weight (Approximate):
13 kg
Miscellaneous
Certifications & Standards:
IEEE Standards:
- 802.1D MAC
- 802.1p
- 802.1Q
- 802.1s
- 802.1w
- 802.3ad
- 802.3ae
- 802.3ag
- 802.3ah
- UL 60950-1
- EN 60825-1
- EN 60825-2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1
- Anatel
- ULAR
- GOST
- EN 60950-1/A11
- FDA 21 CFR Subchapter J
- NOM
- VCCI Class A
- EN 55022 Class A
- ICES-003 Class A
- ANSI C63.4 2003
- AS/NZS CISPR 22 Class A
- EN 61000-3-2:2006
- EN 61000-3-3:1995+A1:2001+A2:2005
- EMC Directive 2004/108/EC
- FCC (CFR 47, Part 15) Class A
- EN 300 386 V1.3.3
- EN 55024:1998+ A1:2001 + A2:2003
- EN 61000-4-2
- IEC 61000-4-2
- EN 61000-4-3
- IEC 61000-4-3
- EN 61000-4-4
- IEC 61000-4-4
- EN 61000-4-5
- IEC 61000-4-5
- EN 61000-4-6
- IEC 61000-4-6
- IEC 61000-4-8
- EN 61000-4-8
- EN 61000-4-11
- IEC 61000-4-11
- EN 61000-3-2
- IEC 61000-3-2
- EN 61000-3-3
- IEC 61000-3-3
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
1 Year
