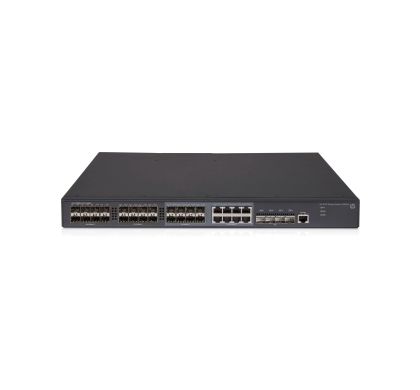

HP 5130-24G-SFP-4SFP+ EI Manageable Layer 3 Switch

HP 5130-24G-SFP-4SFP+ EI Manageable Layer 3 Switch
JG933A

This product has been discontinued by the manufacturer

Please visit

HP Switches & Bridges

for alternative options.

Description

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
5130 EI
Product Model:
5130-24G-SFP-4SFP+ EI
Product Name:
5130-24G-SFP-4SFP+ EI Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of Network (RJ-45) Ports:
8
Port/Expansion Slot Details:
  • 4 x 10 Gigabit Ethernet Expansion Slot
  • 16 x Gigabit Ethernet Expansion Slot
  • 8 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10GBase-X
  • 1000Base-X
  • 10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:
28
Expansion Slot Type:
  • SFP+
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
24
Number of SFP+ Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • Web-based Management
    • SNMP v1/2c/3
    • Command Line Interface (CLI)
    • RMON
    • DHCP
    • IMC
    • MIB

Memory

Standard Memory:
  • 1 GB
Memory Technology:
SDRAM
Flash Memory:
128 MB

Reliability

MTBF:
456105.60 Hour

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.9 mm
Depth:
359.9 mm
Weight (Approximate):
8 kg

Miscellaneous

Package Contents:
  • 5130-24G-SFP-4SFP+ EI Switch
  • Mounting Brackets
  • Power Cord
Certifications & Standards:
Safety:
  • UL 60950-1
  • EN 60825-1 Safety of Laser Products-Part 1
  • EN 60825-2 Safety of Laser Products-Part 2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • Anatel
  • ULAR
  • GOST
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
Emissions:
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
  • EN 61000-4-11:2004
  • ANSI C63.4-2009
  • EN 61000-3-3:2008
  • VCCI V-4/2012.04
  • EN 6100-3-2:2006+A1:2009 + A2:2009
  • EN 61000-3-2:2006+A1:2009+A2:2009
  • EN 61000-4-3:2006
  • EN 61000-4-4:2012
  • EN 61000-4-5:2006
  • EN 61000-4-6:2009
  • AS/NZS CISPR 22:2009 Class A
  • CISPR 22:2008 Class A
  • EN 55022:2010 Class A
  • EN 61000-4-29: 2000
  • CISPR 24:2010
  • EN 300 386 V1.6.1
  • VCCI V-3/2013.04 Class A
Immunity:
  • Generic: EN 55024
  • ESD: EN300 386
IEEE Standards:
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3a
  • 802.3a
  • 802.3i
  • 802.3x
  • 802.3z
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE
  • REACH
  • RoHS

Warranty

Standard Warranty:
