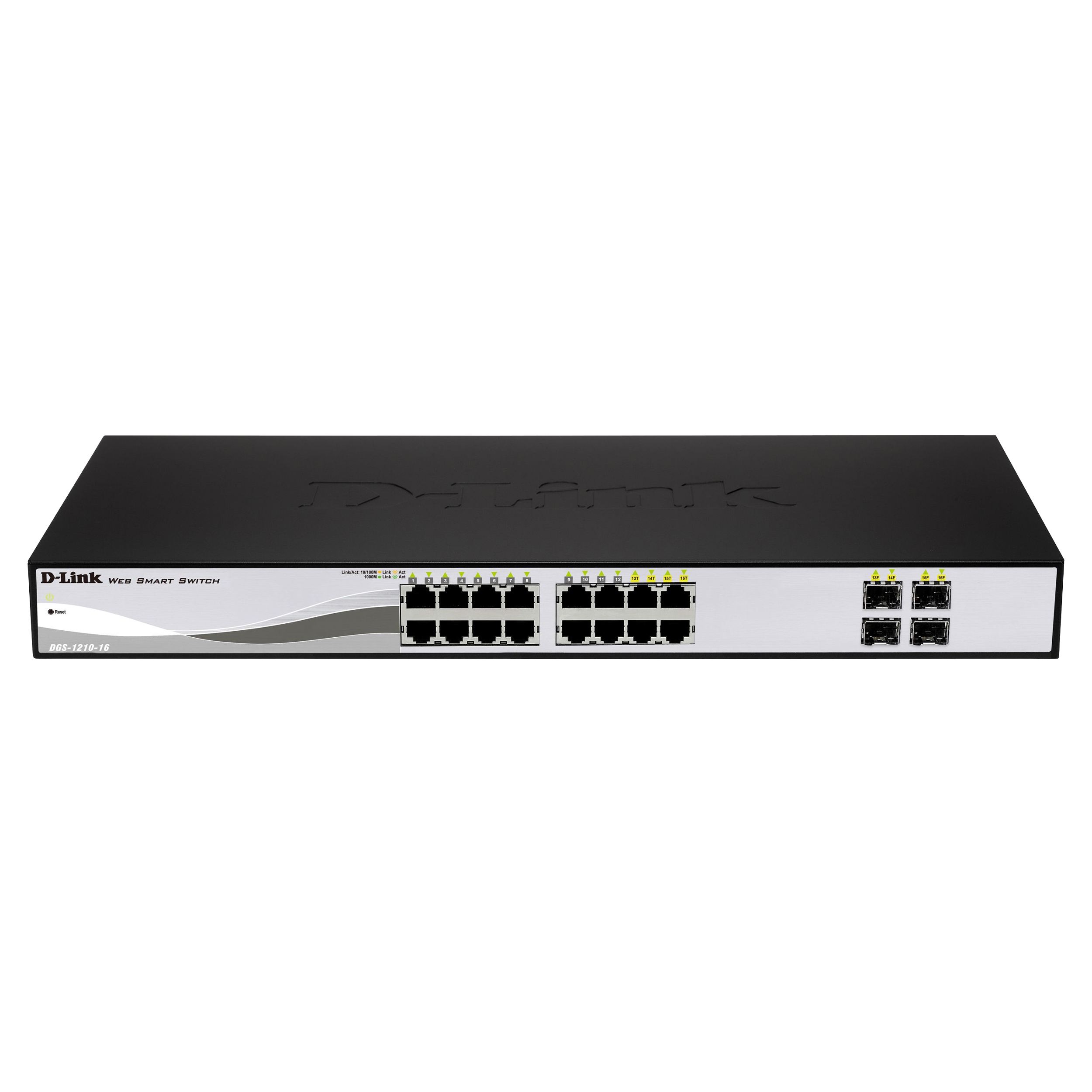

D-LINK DGS-1210-20 20 Ports Manageable Ethernet Switch

DGS-1210-20
Please Call
Please contact us for pricing

Description

The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine™. The DGS-1210 Series uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Series:
DGS-1210
Product Model:
DGS-1210-20
Product Name:
DGS-1210-20 Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
20
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Stack Port:
No
Number of Network (RJ-45) Ports:
20
Port/Expansion Slot Details:
  • 20 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Twisted Pair Cable Standard:
  • Category 5
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
4
Shared SFP Slot:
Yes
Number of SFP Slots:
4

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • Web-Based Management
    • Command Line Interface
    • SNMP v1, v2, v3
    • RMON 1, 2, 3, 9
    • Telnet
    • VLAN
    • QoS
    • MIB

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Desktop
  • Rack-mountable

Miscellaneous

Package Contents:
  • DGS-1210-20 Ethernet Switch
  • 1 x AC Power Cord
  • 4 x Rubber Feet
  • Screws
  • 2 x Mounting Brackets
  • 1 x Multi-Lingual Getting Started Guide
  • 1 x CD with User Manual, SmartConsole Utility program, and D-View Module
Certifications & Standards:
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3X
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.3ad
  • FCC class A
  • CE Class A
  • VCCI Class A
  • IC Class A
  • cUL
  • LVD
  • CE
