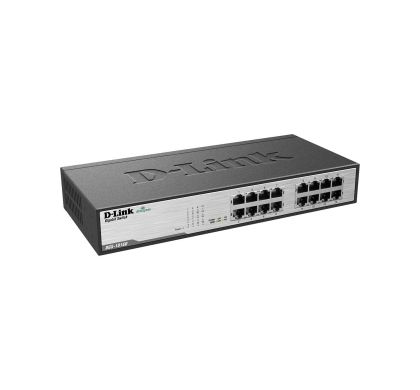

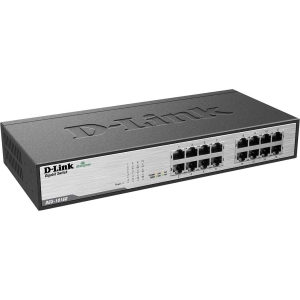

D-LINK DGS-1016D 16 Ports Ethernet Switch

DGS-1016D
Please Call
Please contact us for pricing

Description

Now, with the new high port-density Desktop Gigabit Switch from D-Link, upgrading your desktops to Gigabit connections has never been more cost-effective and easier. This desktop Gigabit switch offer an economical way for your workgroup to benefit from the increased bandwidth of Gigabit Ethernet.

This switch integrate seamlessly with your existing network equipment, be it Ethernet, Fast Ethernet or Gigabit Ethernet, dispensing you of the need to replace any hardware or software.

With 10/100/1000Mbps auto-sensing, auto-negotiation for every port, plus the ability to exist with your Cat. 5 wall wiring, network installation is a breeze. All you need to do is plug the cables to the switch, and your network is up and running in a matter of minutes.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DGS-1016D
Product Name:
DGS-1016D 16-Port Copper Gigabit Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
16
Number of Network (RJ-45) Ports:
16
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10Base-T
  • 10/100/1000Base-T

Network & Communication

Layer Supported:
2

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
Desktop
Height:
43.9 mm
Width:
279.9 mm
Depth:
179.8 mm
Weight (Approximate):
1.75 kg

Miscellaneous

Additional Information:
    • Access Method: CSMA/CD
    • Topology: Star
    • MAC Address Learning: Automatic update
Certifications & Standards:
  • IEEE 802.3: 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u: 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3: NWay auto-negotiation
  • IEEE 802.3x: Flow Control
  • EIA/TIA-568
Emission (EMI):
  • FCC Class A
  • CE Class A
  • VCCI Class A
Safety:
  • CSA International

Warranty

Standard Warranty:
2 Year
Additional Warranty Information:
  • Any replacement product will have the remainder of the initial warranty period
