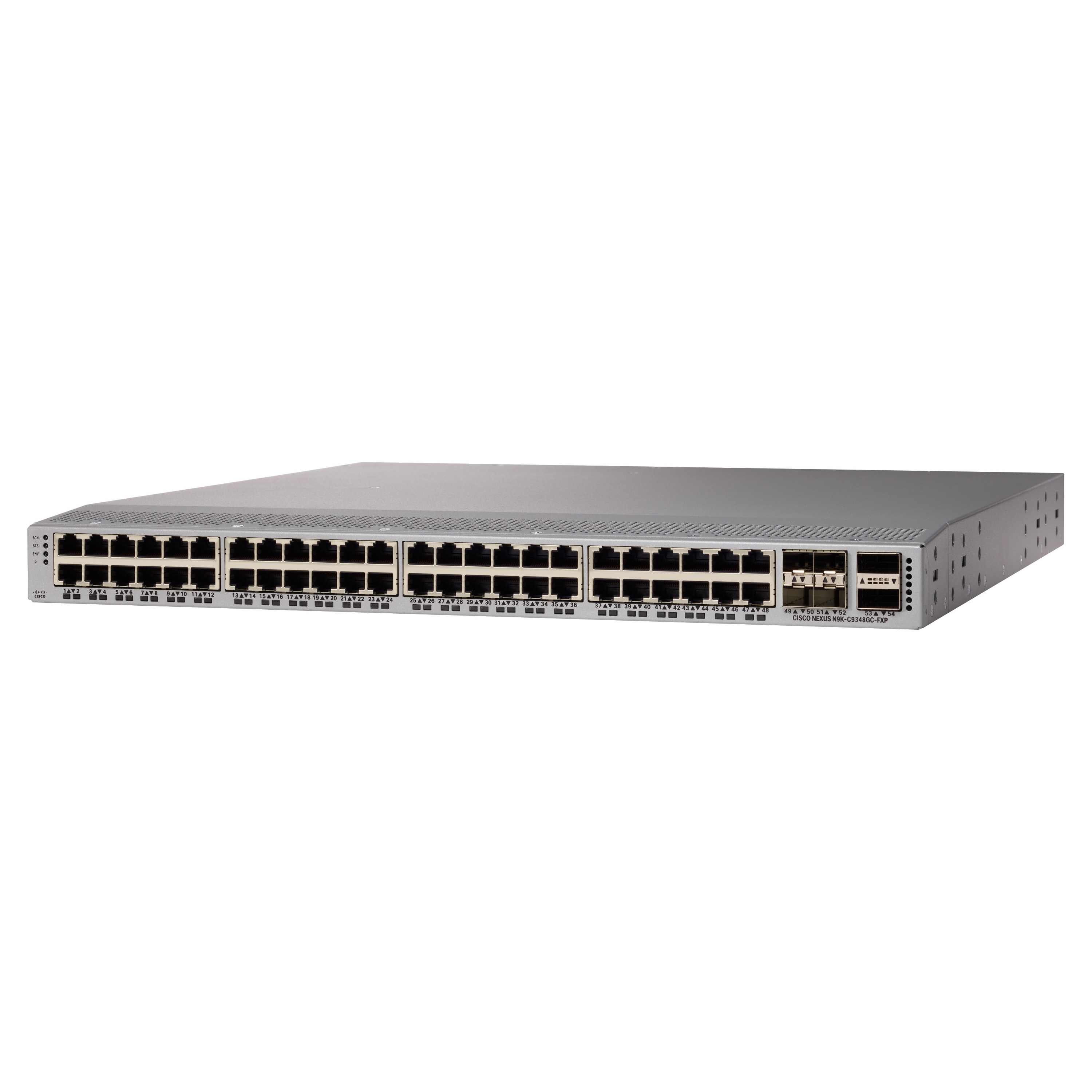

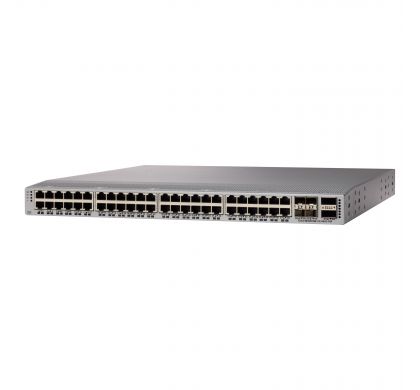

CISCO Nexus 9348GC-FXP 48 Ports Manageable Ethernet Switch
Description
The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the 9348GC-FXP can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports. The Cisco Nexus 9348GC-FXP is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Nexus
Product Series:
9300
Product Model:
9348GC-FXP
Product Name:
Nexus 9348GC-FXP Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
No
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 25 Gigabit Ethernet Expansion Slot
- 2 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 25GBase-T
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots:
6
Expansion Slot Type:
- QSFP28
- SFP28
Shared SFP Slot:
No
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.4 mm
Depth:
500.4 mm
Weight (Approximate):
6.44 kg
Miscellaneous
Green Compliant:
Yes
