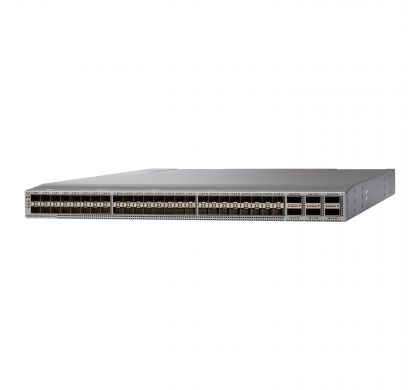

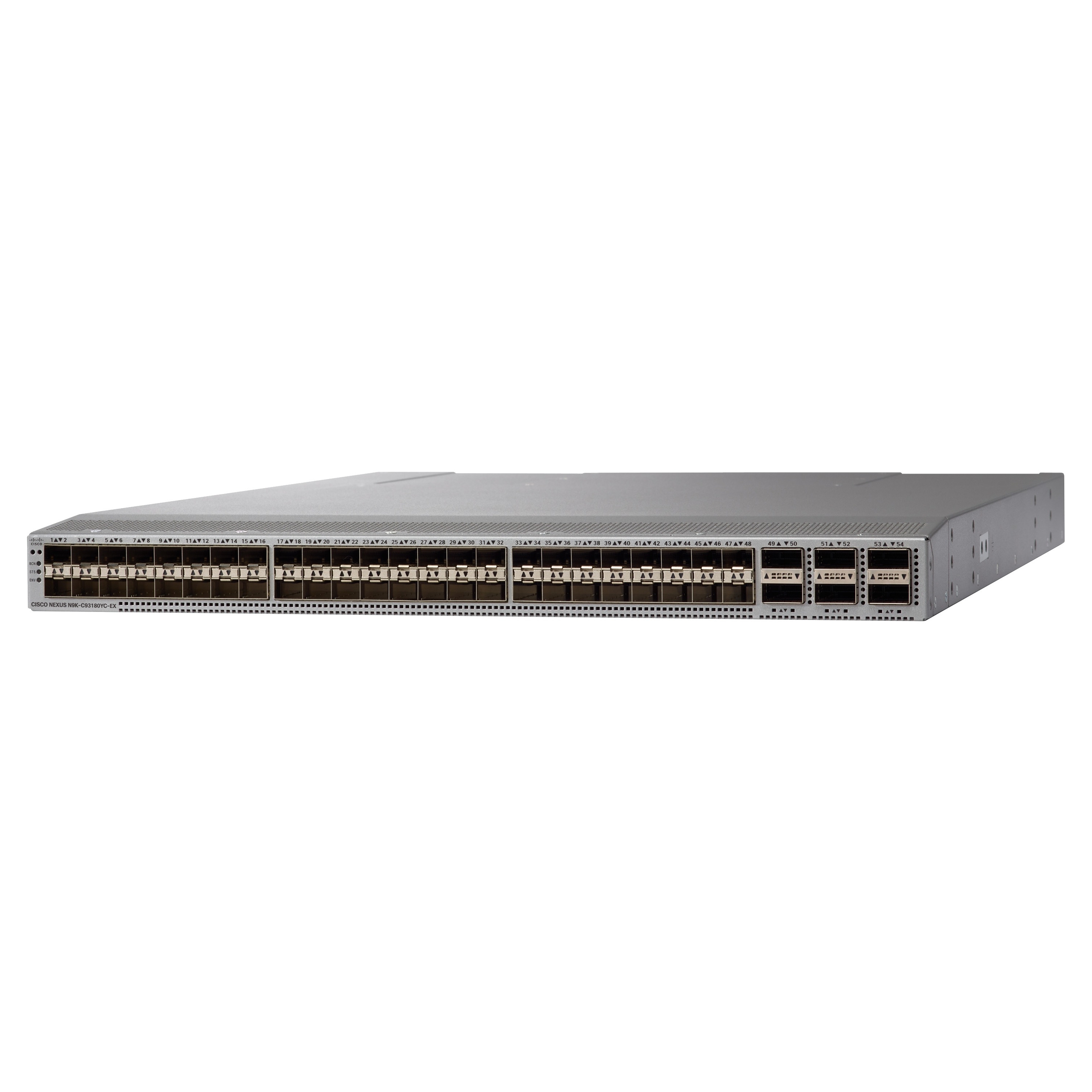

CISCO Nexus 93180YC-EX Manageable Layer 3 Switch

C1-N9K-C93180YC-EX

This product has been discontinued by the manufacturer

Please visit

CISCO Switches & Bridges

for alternative options.

Description

The Cisco Nexus® 9300-EX platform is the next generation of the fixed Cisco Nexus 9000 Series Switches. Cisco Nexus 9300-EX platform switches are built on modern system architecture designed to provide high performance to meet the evolving needs of highly scalable data centers. They offer a variety of interface options available to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10 and 40 Gbps to 50 and 100 Gbps at the aggregation layer.

The platform provides investment protection for customers, delivering large buffers, immense Layer 2 and Layer 3 scalability, and performance to meet the changing needs of highly virtualized, automated cloud environments in data centers. The platform hardware supports Cisco® Data Center Interconnect (DCI) features, enabling flexible workload mobility and LAN and SAN convergence.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Nexus
Product Series:
9300
Product Model:
93180YC-EX
Product Name:
Nexus 93180YC-EX Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Uplink Port:
No
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 48 x 10 Gigabit Ethernet Expansion Slot
  • 6 x 40 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Optical Fiber
Ethernet Technology:
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology:
  • 10GBase-X
  • 40GBase-X

I/O Expansions

Number of Total Expansion Slots:
54
Expansion Slot Type:
  • SFP+
  • QSFP
Shared SFP Slot:
No
Number of SFP+ Slots:
48

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
439.4 mm
Depth:
571.5 mm
Weight (Approximate):
7.80 kg
