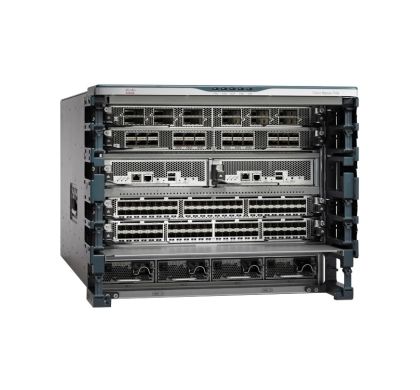

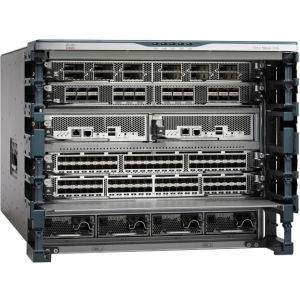

CISCO Nexus 7700 Manageable Switch Chassis

CISCO Nexus 7700 Manageable Switch Chassis
N77-C7706-B23S2E-R

This product has been discontinued by the manufacturer

Please visit

CISCO Switches & Bridges

for alternative options.

Description

The Cisco Nexus® 7000 Series Switches are the foundation of the Cisco® Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set.

The Cisco Nexus 7700 Switches are the latest extension to the Cisco Nexus 7000 Series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the Cisco Nexus 7700 Switches delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Nexus
Product Series:
7000
Product Model:
7700
Product Name:
Nexus 7700 Switch Chassis
Product Type:
Switch Chassis

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Bypass:
No

I/O Expansions

Number of Total Expansion Slots:
6
Expansion Slot Type:
  • Management Module
  • Switch Fabric
  • Network Interface Module (NIM)

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • MIB
    • Cisco Data Center Network Manager
    • SNMP v1, 2c, 3
    • Command Line Interface (CLI)

Power Description

PoE Port:
No
Input Voltage:
  • 230 V AC
  • 120 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
9U
Form Factor:
Rack-mountable
Height:
396.2 mm
Width:
439.4 mm
Depth:
812.8 mm
Weight (Approximate):
65.77 kg
