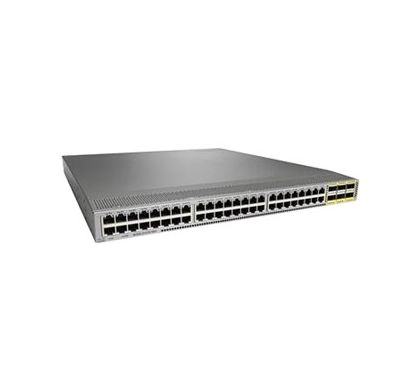

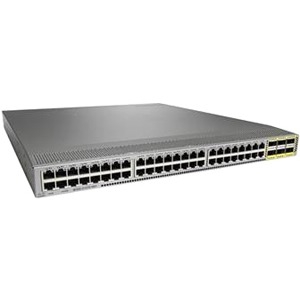

CISCO Nexus 3172TQ 48 Ports Manageable Layer 3 Switch

CISCO Nexus 3172TQ 48 Ports Manageable Layer 3 Switch
N3K-C3172TQ-10GT

This product has been discontinued by the manufacturer

Please visit

CISCO Switches & Bridges

for alternative options.

Description

The Cisco Nexus® 3172PQ and 3172TQ Switches are dense, high-performance Layer 2 and 3, 10- and 40-Gbps switches that are members of the Cisco Nexus 3100 switch platform. Both switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. These Cisco Nexus 3172 switches run the industry-leading Cisco® NX-OS Software operating system that helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. Both also support forward and reverse airflow schemes (port-side exhaust and port-side intake) with AC and DC power inputs.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Nexus
Product Series:
3000
Product Model:
3172TQ
Product Name:
Nexus 3172TQ Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Stack Port:
No
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
  • 6 x 40 Gigabit Ethernet Expansion Slot
  • 48 x 10 Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • 10 Gigabit Ethernet
Network Technology:
  • 10GBase-T

I/O Expansions

Number of Total Expansion Slots:
6
Expansion Slot Type:
  • QSFP+
Shared SFP Slot:
No

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • SNMP v1/v2/v3
    • Telnet
    • RMON
    • CLI
    • sFlow
    • DHCP
    • Syslog
    • Web Based Managment
    • VLAN
    • QoS
    • MIB

Memory

Flash Memory:
2 GB

Power Description

PoE Port:
No
Input Voltage:
  • 220 V AC
  • 110 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
500.4 mm
Depth:
439.4 mm
Weight (Approximate):
9.98 kg
