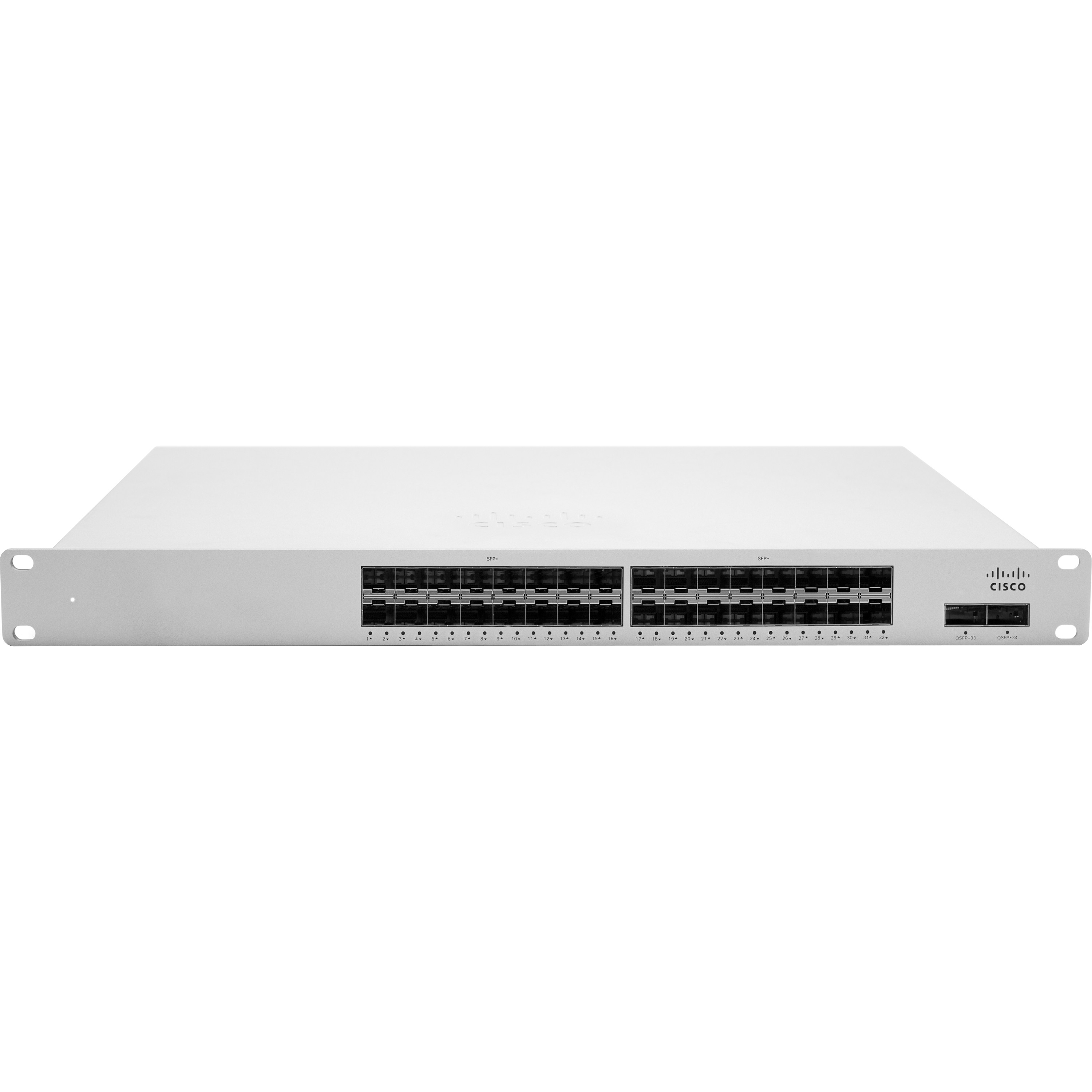

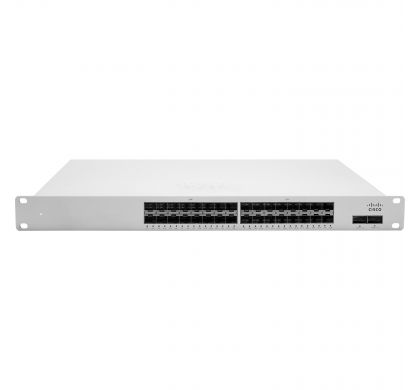

CISCO Meraki MS425-32-HW Manageable Ethernet Switch

MS425-32-HW
Please Call
Please contact us for pricing

Description

The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.

EXPANDING CLOUD MANAGEMENT TO THE CAMPUS

Cisco Meraki aggregation switches extend Meraki's cloud management to campus deployments. Just like our access switches, these aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files - or pre-staging.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Series:
MS400
Product Model:
MS425-32-HW
Product Name:
Cloud-Managed 32 port 10GbE Aggregation Switch with 40GbE Uplinks/Stacking
Product Type:
Ethernet Switch

Interfaces/Ports

Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 32 x 10 Gigabit Ethernet Expansion Slot
  • 2 x 40 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • 40 Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 40GBase-X
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
34
Expansion Slot Type:
  • SFP+
  • QSFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
32

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
45 mm
Width:
487 mm
Depth:
485 mm
Weight (Approximate):
6.35 kg

Miscellaneous

Green Compliant:
Yes
