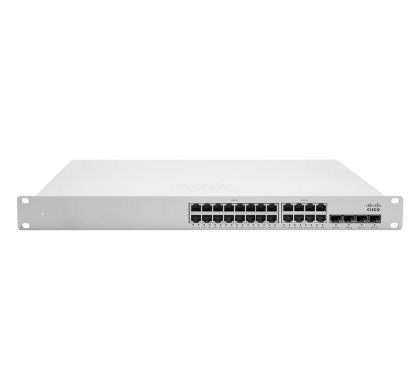

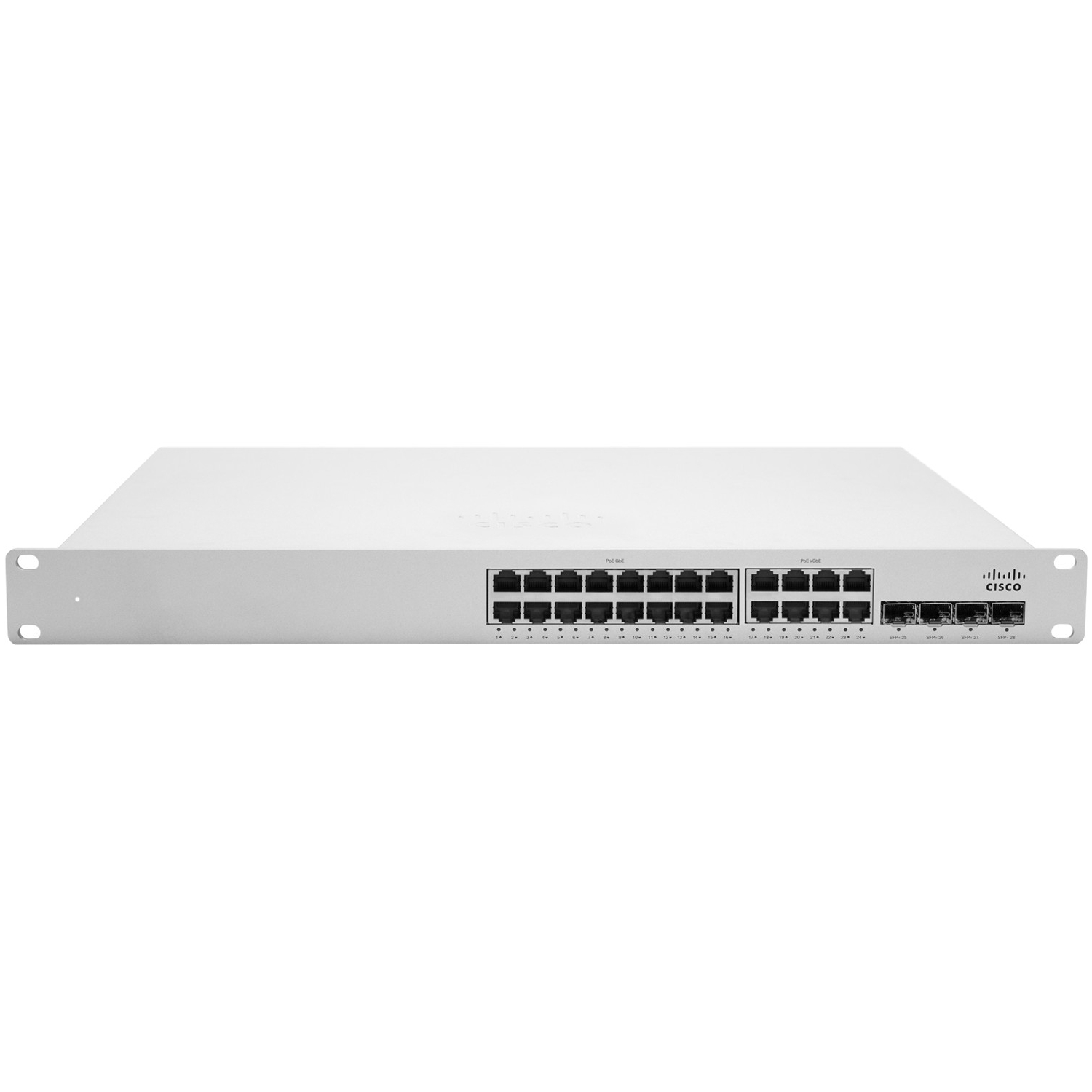

CISCO Meraki MS350-24X-HW 24 Ports Manageable Layer 3 Switch

MS350-24X-HW
Please Call
Please contact us for pricing

Description

The Cisco Meraki MS brings the benefits of the cloud to networks of all sizes: simplified management, reduced complexity, network wide visibility and control, with lower operational cost for campus and branch deployments. Cisco Meraki access switching is available in both Layer 2 and powerful Layer 3 models. Mission-critical features - like deep, Layer 7 application visibility, network topology, virtual stacking, QoS for business critical applications, 802.1X access control, and more - are present in all models.

The MS350 is the flagship Meraki layer 3 stackable access switch, with high-speed connectivity including multigigabit, high availability, PoE+ and UPoE, optional redundant power supplies and fans. MS350 switches physically stack up to 8 units, with 160Gbps of stack bandwidth.

The MS220 family provides layer 2 access switching and is ideal for deploying to branch locations. This family also supports an optional, rack-mountable remote PSU

A FRESH APPROACH

Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise- class switches.

Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Series:
MS350
Product Model:
MS350-24X-HW
Product Name:
Cloud-Managed L3 24 Port Multigigabit 740W UPoE Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Rack-mountable
  • Desktop
Height:
44 mm
Width:
516 mm
Depth:
485 mm
Weight (Approximate):
6.57 kg

Miscellaneous

Green Compliant:
Yes
