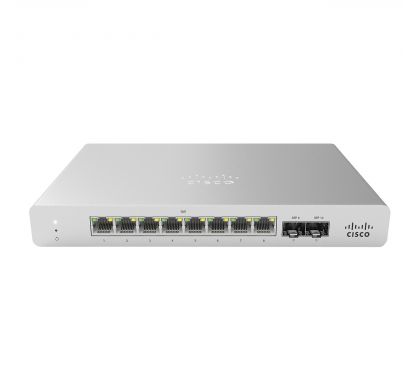

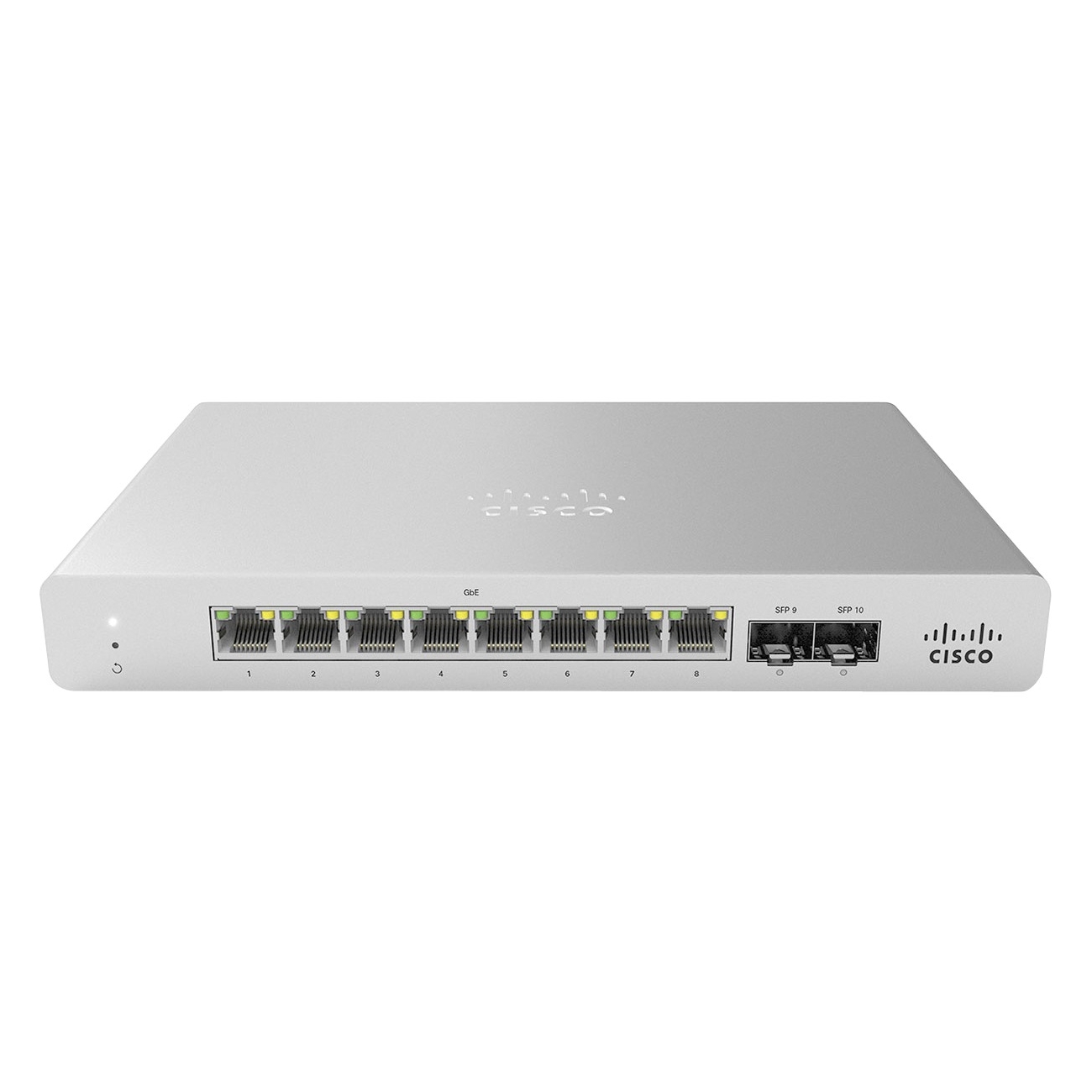

CISCO Meraki MS120-8 8 Ports Manageable Ethernet Switch

MS120-8-HW
Please Call
Please contact us for pricing

Description

CLOUD-MANAGED COMPACT ACCESS SWITCHES

Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.

Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Series:
MS120
Product Model:
MS120-8
Product Name:
MS120-8 1G L2 Cloud Managed 8x GigE Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
8
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
No
Number of SFP Slots:
2

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Desktop
Height:
27.9 mm
Width:
222 mm
Depth:
150.1 mm
Weight (Approximate):
1.07 kg
