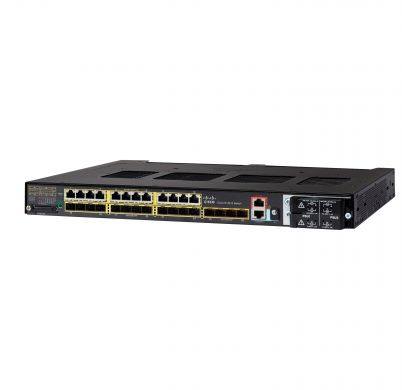

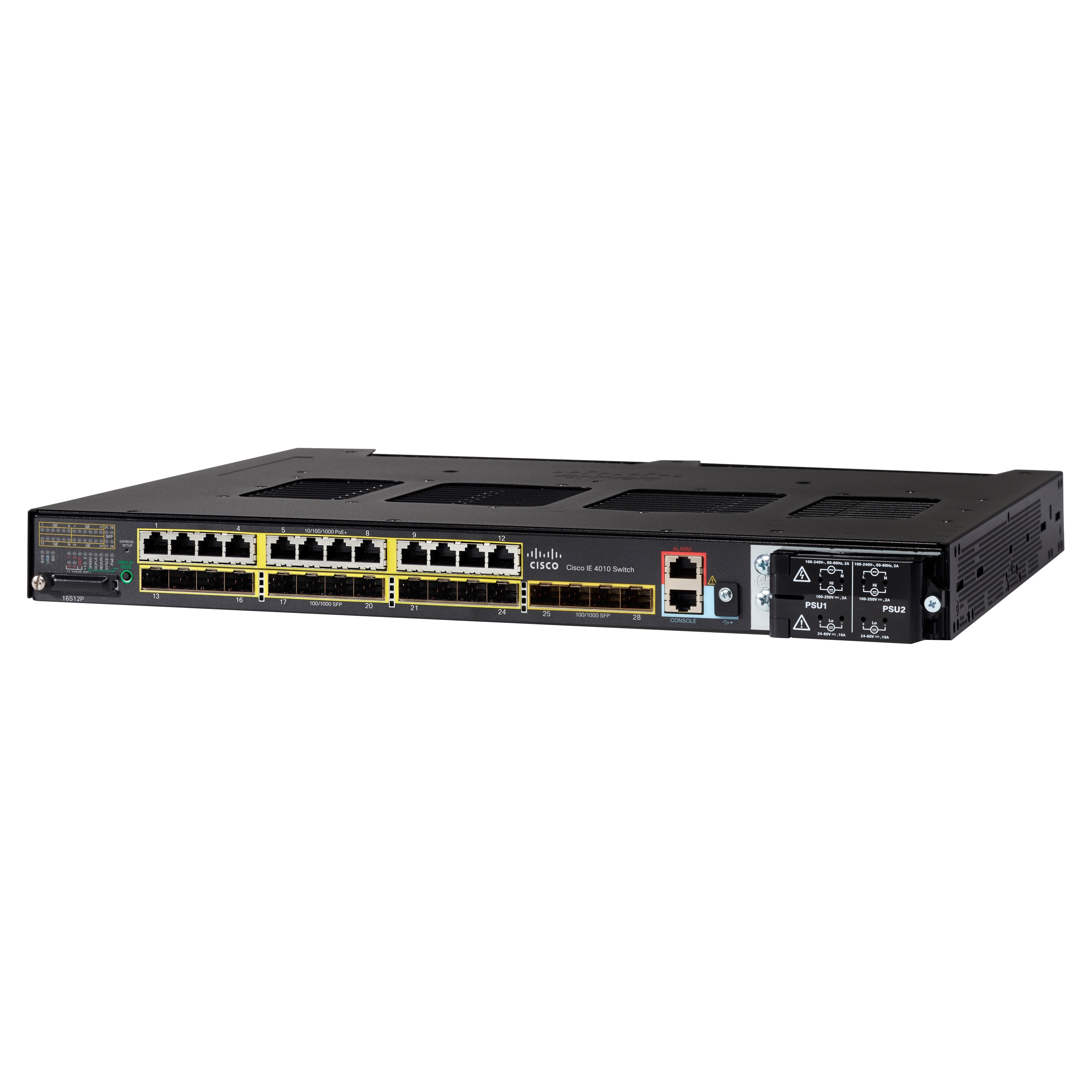

CISCO IE-4010-16S12P 12 Ports Manageable Ethernet Switch

IE-4010-16S12P
Please Call
Please contact us for pricing

Description

Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.

The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4010
Product Model:
IE-4010-16S12P
Product Name:
IE-4010-16S12P Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
12
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 12 x Gigabit Ethernet Network
  • 12 x Gigabit Ethernet Expansion Slot
  • 4 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 1000Base-X
  • 10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:
16
Expansion Slot Type:
  • SFP
Shared SFP Slot:
No
Number of SFP Slots:
16

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
44.5 mm
Width:
444.5 mm
Depth:
355.6 mm
Weight (Approximate):
5.76 kg
