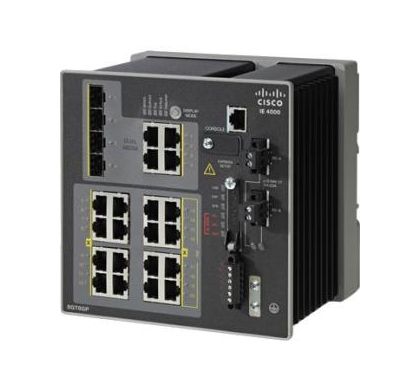

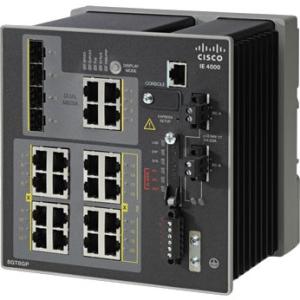

CISCO IE-4000-8T4G-E 12 Ports Manageable Layer 3 Switch

IE-4000-8T4G-E
Please Call
Please contact us for pricing

Description

The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4000
Product Model:
IE-4000-8T4G-E
Product Name:
IE-4000-8T4G-E Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
12
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Stack Port:
No
Number of Network (RJ-45) Ports:
8
Port/Expansion Slot Details:
  • 8 x Fast Ethernet Network
  • 4 x Gigabit Ethernet Uplink
  • 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 100Base-X
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • VLAN
    • SNMP v1,v2,v3
    • MIB
    • Syslog
    • DHCP
    • QoS
    • CLI
    • RMON 2
    • SSH
    • Telnet
    • Web Based Management

Memory

Standard Memory:
  • 512 MB
Memory Technology:
DRAM
Flash Memory:
128 MB
Memory Card Supported:
  • Secure Digital (SD) Card

Reliability

MTBF:
591070 Hour

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
Rail-mountable
Height:
129.3 mm
Width:
155.4 mm
Depth:
155.4 mm
Weight (Approximate):
2.88 kg
