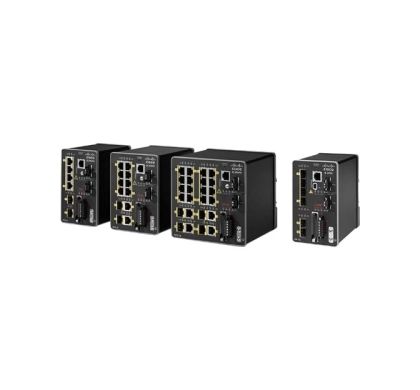

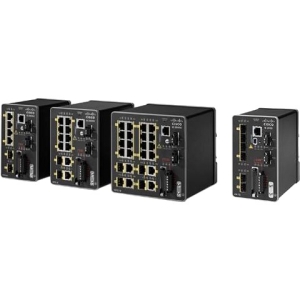

CISCO IE-2000U-16TC-G-X 20 Ports Manageable Ethernet Switch
Description
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE 2000U
Product Model:
IE-2000U-16TC-G-X
Product Name:
IE-2000U-16TC-G-X Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
20
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
Yes
Stack Port:
No
Number of Network (RJ-45) Ports:
20
Port/Expansion Slot Details:
- 18 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
- 2 x Fast Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100Base-TX
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
- SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- CLI
- SNMP v1, v2c, v3
- Web-based Management
- DHCP
- Syslog
- MIB
- QoS
- VLAN
- RMON I, II
Memory
Standard Memory:
- 256 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Power Description
PoE Port:
Yes
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
Rail-mountable
Height:
129.5 mm
Width:
127 mm
Depth:
133.6 mm
Weight (Approximate):
1.97 kg
