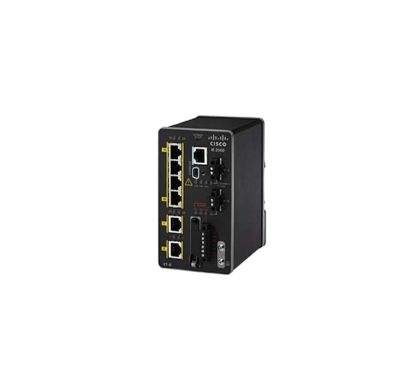

CISCO IE-2000-4T-L 4 Ports Manageable Ethernet Switch

CISCO IE-2000-4T-L 4 Ports Manageable Ethernet Switch
IE-2000-4T-L
Please Call
Please contact us for pricing

Description

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE-2000
Product Model:
IE-2000-4T-L
Product Name:
IE-2000-4T-L Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
4
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of Network (RJ-45) Ports:
6

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
  • Category 5
Ethernet Technology:
  • Fast Ethernet
Network Technology:
  • 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • SNMP
    • Telnet
    • Web Base Management
    • CNA
    • VLAN

Memory

Standard Memory:
  • 256 MB
Maximum Memory:
1 GB
Memory Technology:
DRAM
Flash Memory:
64 MB
Memory Card Supported:
  • Secure Digital (SD) Card

Power Description

PoE Port:
No
Input Voltage:
  • 60 V DC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
  • Rail-mountable
  • Desktop
Height:
129.5 mm
Width:
74.9 mm
Depth:
114.6 mm
Weight (Approximate):
1.14 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL/CSA 60950-1
  • EN 60950-1
  • CB to IEC 60950-1 (with country deviations)
  • NOM to NOM-019-SCF1 (through partners and distributors)
  • CE Marking
Hazard:
  • ANSI/ISA 12.12.01 (Class 1, Div 2 A-D)
  • EN 60079-0, -15 ATEX certification (Class I, Zone 2 A-D)
EMC Emission and Community:
  • FCC 47 CFR Part 15 Class A
  • EN 55022A Class A
  • VCCI Class A
  • AS/NZS CISPR 22 Class A, AS/NZS CISPR 24
  • CISPR11 Class A, CISPR22 Class A
  • ICES 003 Class A
  • KCC -Korea
  • CE Marking
  • C-Tick (Australia)
  • Russia certification
  • Brazil certification
  • IEC/EN61000-4-2 (Electro Static Discharge), 15kV Air/8kV Contact
  • IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20V/m)
  • IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line
  • IEC/EN 61000-4-5 (Surge 2 kV/1 kV)
  • IEC/EN 61000-4-6 (Conducted Immunity, 10V/emf)
  • IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
  • IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
  • IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
  • IEC/EN 61000-4-11 (AC power Voltage Immunity)
  • IEC/EN 61000-4-29 (Voltage Dips Immunity)
  • IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)
  • IEC/EN 61000-6-4 Class A
  • EN 61326
Shock and Vibration:
  • IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)
  • IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal)
  • IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration 2g@10-500Hz)
  • IEC 60068-2-6, IEC 60068-2-64 (Non-operational Vibration)
Industry:
  • UL 508
  • CSA C22.2 No. 142
  • EN 61131-2 (Programmable Controllers)
  • Protective Coating
  • Substation (IEEE 1613, IEC 61850-3) KEMA
  • Lloyd's Register Type Approval - ENV2 or ENV3
  • British, German Lloyds
  • Marine (LR, BV, GL, DnV, Rina ABS, KR)
  • RA 156-165 Mhz 24 dBuV/M - Class A is 50 dBuV/M - Marine Band
  • Railway EN 50155
  • NEMA TS-2
  • IP30
  • ODVA Industrial EtherNet/IP
  • PROFINETv2
Corrosive Testing:
  • ISO-12944-6
  • IEC-60068-2-60
Humidity:
  • IEC 60068-52-2 (Salt Fog Mist, Test Kb) Marine environments
  • IEC 60068 -2-3
  • IEC 60068-2-30
  • Relative Humidity: 5% to 95% Non-condensing
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
1 Year
