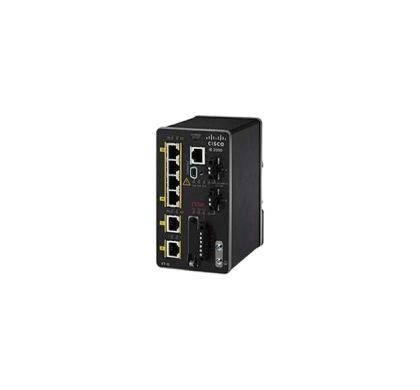

CISCO IE-2000-4T-B 4 Ports Manageable Ethernet Switch
Description
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE-2000
Product Model:
IE-2000-4T-B
Product Name:
IE-2000-4T-B Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
4
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
6
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10/100Base-TX
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- Telnet
- VLAN
- SNMPv3
- CNA
- VLAN
- CiscoWorks LAN Management Solution (LMS)
- DHCP
- QoS
Memory
Standard Memory:
- 256 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Memory Card Supported:
- Secure Digital (SD) Card
Reliability
MTBF:
374052 Hour
Power Description
PoE Port:
No
Input Voltage:
- 60 V DC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
- Rail-mountable
- Desktop
Height:
129.5 mm
Width:
74.9 mm
Depth:
114.6 mm
